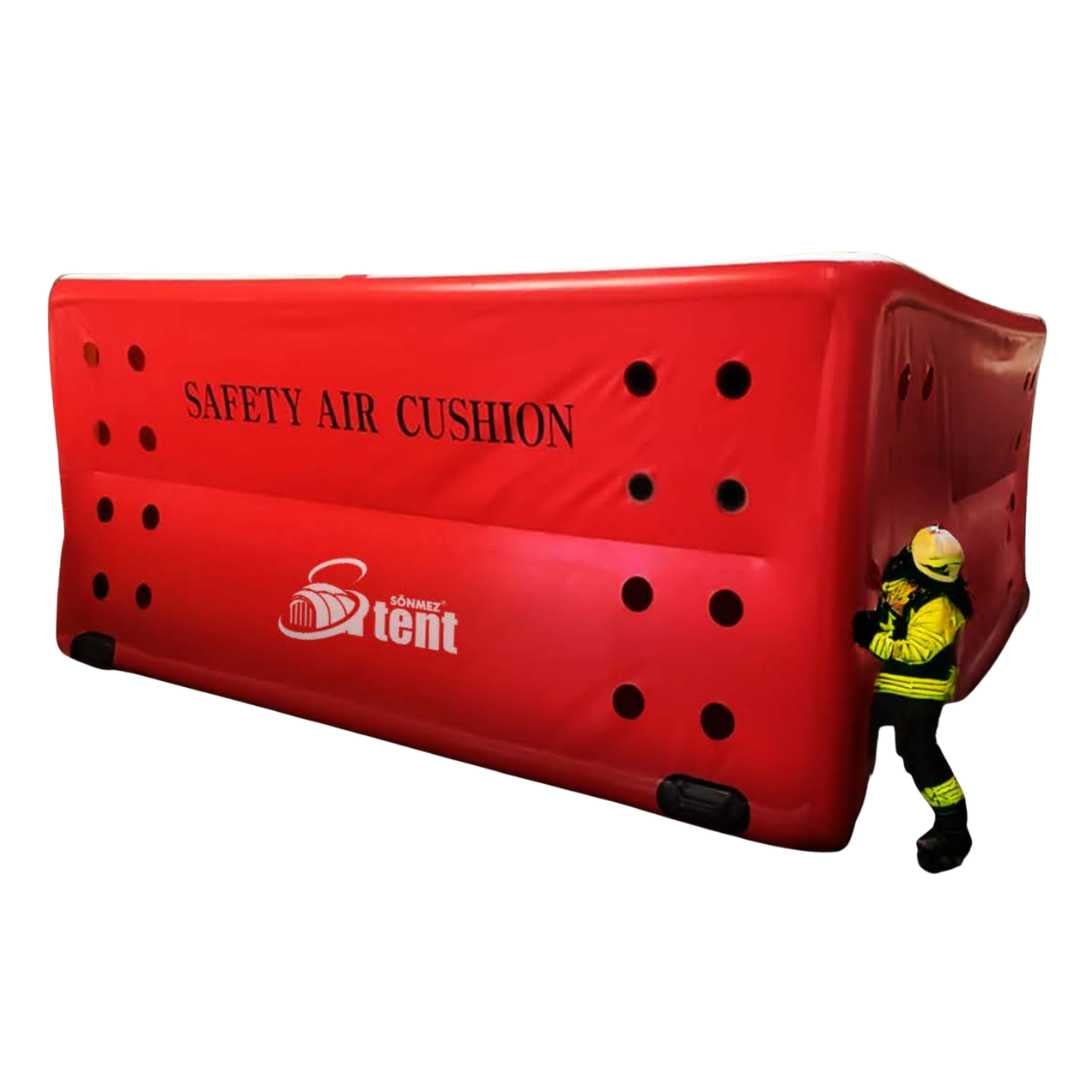

SMZ 60 Inflatable Rescue System for High-Rise Emergency Response
The Sonmez SMZ 60 Safety Air Cushion is a rapid-deployment inflatable rescue system designed for emergency evacuation and rescue operations from height. Suitable for fire and rescue services, industrial emergency response teams and specialist rescue units, the SMZ 60 provides a large inflatable landing area for incidents where conventional evacuation routes are unavailable or inaccessible.
Designed for single-person use per rescue cycle, the SMZ 60 can be deployed in less than 120 seconds and returns to an operational state in less than 20 seconds between uses. With a maximum operating height of up to 60 metres, it is well suited to high-rise emergency response applications.
Constructed from durable neoprene-based materials, the cushion is designed to resist water, abrasion, tearing and environmental exposure while operating across a wide range of conditions.
Key Features
- Maximum operating height up to 60 metres
- Inflation time less than 120 seconds
- Recovery time less than 20 seconds
- Single-person use per rescue cycle
- Minimum three-person operating crew
- Durable neoprene construction
- Waterproof, flame-resistant and abrasion-resistant materials
- Resistant to acids and environmental exposure
- Multi-chamber inflatable design
- Designated landing zone (drop point)
- High-visibility reflective bands
- Integrated carrying handles
- Includes fan ducts and duct adaptors
- Compliant with DIN 14151 T1-T3
- Requires 2 × compatible 18″ battery-powered PPV fans (not included)
How the SMZ 60 Works
The Sonmez SMZ 60 uses a multi-chamber inflatable design to create a controlled landing area during emergency rescue operations. When a person lands on the cushion, the structure temporarily deforms and compressed air is released through dedicated ventilation openings. This controlled release of air assists with impact absorption before the cushion automatically returns to its operating shape, ready for the next rescue cycle.
The design incorporates separate upper and lower chambers, a designated landing zone and reflective visibility markings to support emergency responders during deployment and operation.
Applications
Emergency Rescue Operations from Height
The Sonmez SMZ 60 is suitable for:
Fire and Rescue Services
Emergency Services
Industrial Emergency Response Teams
Mining Operations
Defence Organisations
High-Rise Building Emergency Planning
Specialist Rescue Units
Training and Preparedness Exercises
Why Choose the Sonmez SMZ 60?
The SMZ 60 is the largest model in the Sonmez Rescue Safety Cushion range and is designed for incidents involving taller buildings and structures. Combining rapid deployment, a large landing area and a compact transport footprint, it provides emergency response organisations with a practical solution for high-rise rescue and evacuation scenarios.
Features such as reflective markings, integrated carrying handles, a designated landing zone and rapid recovery between rescue cycles help support efficient deployment and operation in time-critical situations.
Technical Specifications
Maximum Rescue Height: Up to 60 m
Operating Personnel: Minimum 3
Installed Dimensions: 8.5 m × 6.5 m × 2.5 m
Ground Area Required: Minimum 9.0 m × 7.0 m
Weight: Approx. 185 kg
Deployment Time: ≤ 120 seconds
Recovery Time: ≤ 20 seconds
Operating Temperature: -20°C to +50°C
Use Capacity: One person at a time
Compliance: DIN 14151 T1-T3
Included: Fan ducts and duct adaptors
Air Supply: Requires 2 × 18″ battery-powered PPV fans (not included)
Shipping Dimensions: 130 cm × 100 cm × 70 cm
Included Features:
- Designated landing zone (drop point)
- Reflective visibility bands
- Integrated carrying handles
- Fan ducts and adaptors
- Safety instructions
- Repair kit
FAQ
Rescue safety cushions are typically considered for emergency situations where normal evacuation routes are unavailable, compromised or inaccessible and a rapid rescue solution is required.
The cushion uses a multi-chamber design that temporarily deforms during use. Air is released through dedicated ventilation openings, helping dissipate energy before the cushion returns to its operational shape for the next rescue cycle.
Reflective bands assist with visibility during low-light or reduced-visibility operations, helping responders identify the cushion’s position during deployment and use.
Key considerations include maximum operating height, deployment footprint, storage requirements, personnel availability, operational environment and compatibility with existing rescue procedures. Talk to our team for more information.
Looking for more? See the SMZ 30 for rescues up to 30m
