Description

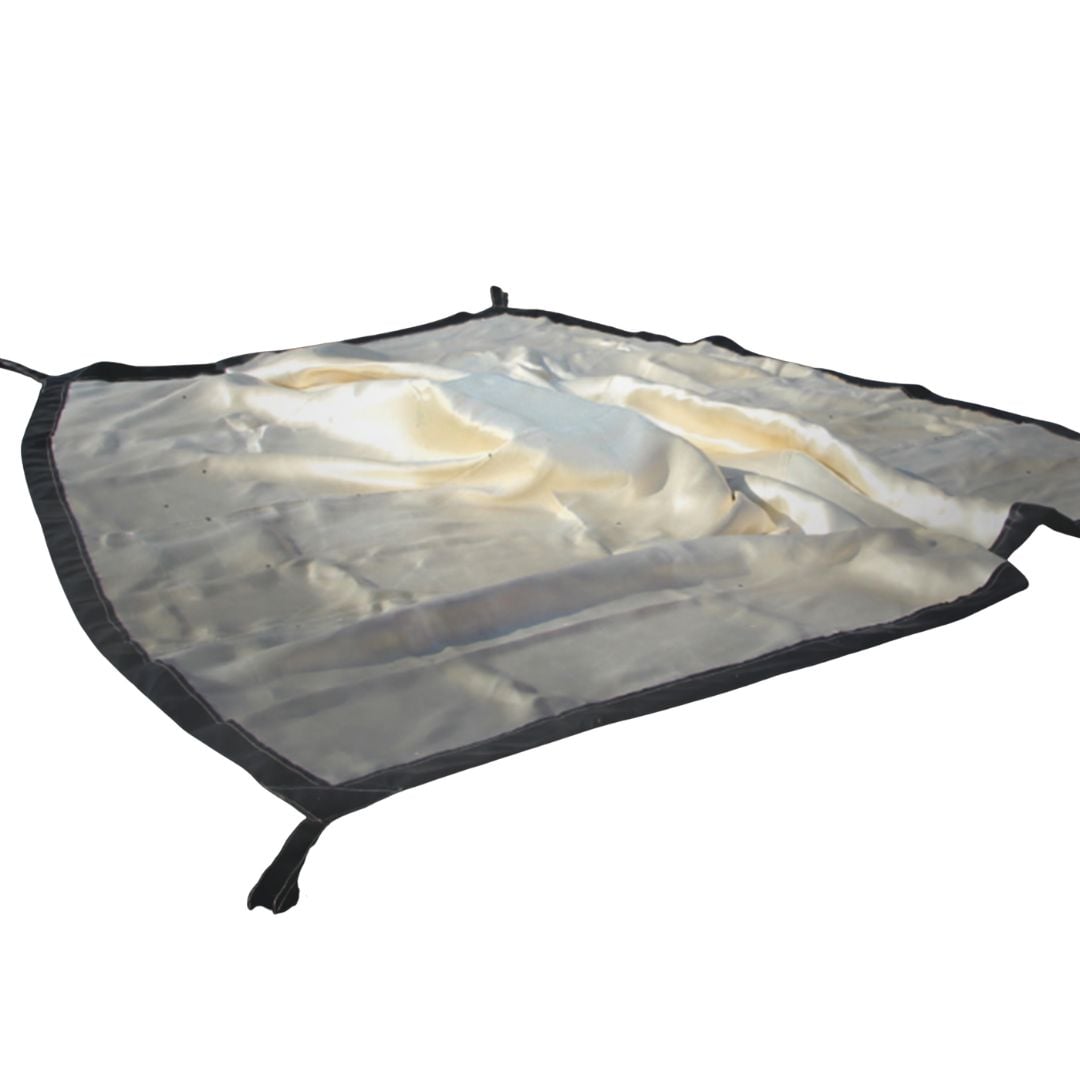

VLITEX Fire Blanket ULTIMATE

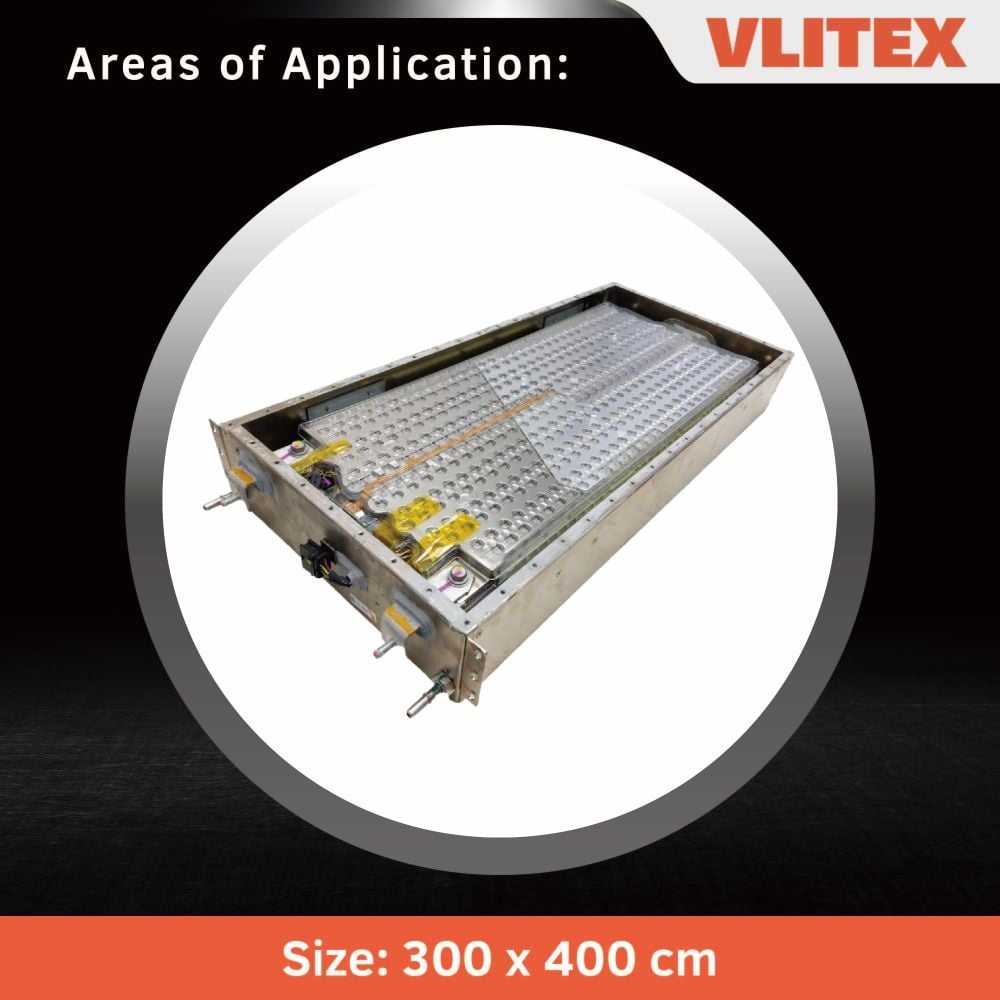

Fire Containment for Open Lithium Battery Modules > 5kWh
The VLITEX Fire Blanket ULTIMATE is a reusable, multi-layer fire containment blanket for open lithium-ion battery modules > 5kWh, where cells are exposed outside their original enclosure. Fire Response is the exclusive Australian distributor, supplying EV workshops, battery testing labs, recycling operations, mining and energy storage sites.

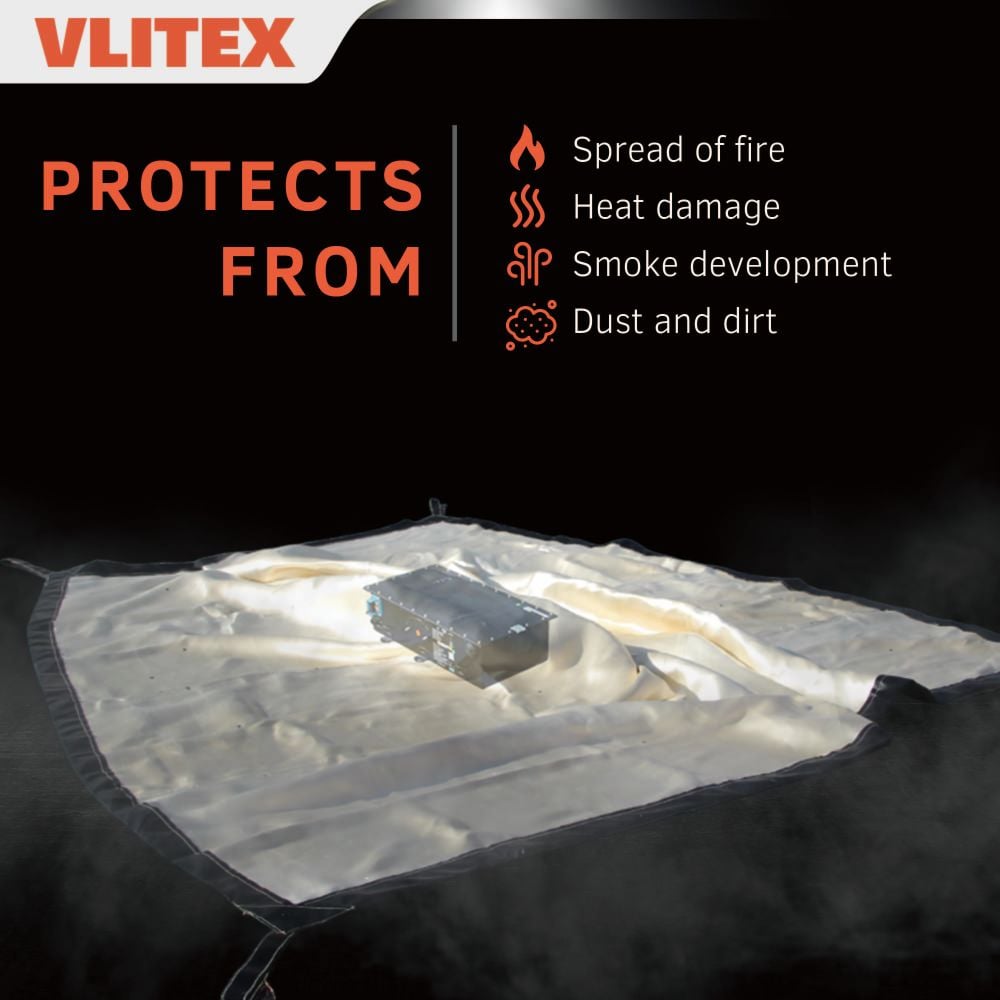

Unlike conventional vehicle fire blankets, the ULTIMATE fire blanket is engineered for demanding battery fire scenarios, helping to isolate flames, reduce smoke and toxic gas spread, lower surrounding temperatures, and limit explosion effects during battery failure events. Note: the blanket is for containment and protection. It does not stop thermal runaway and doesn’t replace suppression or isolation procedures.
Ideal for:
- EV battery repair facilities
- Automotive manufacturers
- Vehicle dismantling and recycling operations
- Battery testing laboratories
- Battery manufacturers
- Industrial facilities handling exposed battery packs
- EV workshops and dealerships
- Energy storage and battery development sites
- Mining battery-electric vehicle workshops
Designed for Exposed Battery Fires
The VLITEX Fire Blanket ULTIMATE has been specifically designed to cover damaged, overheating, or burning battery modules with a capacity > 5kWh, improving scene safety for responders and technicians. This makes the blanket particularly suitable for environments where battery modules are serviced, tested, stored, transported, or dismantled.
Multi-Layer Construction for Extreme Thermal Exposure
The VLITEX Fire Blanket ULTIMATE utilises a specialist multi-layer construction specifically engineered to maintain integrity under the extreme conditions. It incorporates:
- High-temperature (HT) glass fibre fabric
- Silica-based fire-resistant materials
- Carbon fibre components
- Special polymer coatings
- Fire-retardant stitching
| Specification | Details |
|---|---|
| Primary Application | Open battery modules > 5kWh |
| Construction | Multi-layer HT glass fibre, silica materials, carbon fibre |
| Coating | Special polymer coating |
| Stitching | Fire-retardant sewing thread |
| Short-Term Temperature Resistance | Up to 2500°C |
| Long-Term Temperature Resistance | Up to 1600°C |
| Single/Mulit use | Multi use, subject to inspection |
| Standard Size | 3m × 4m |
| Weight | Approx. 27.6kg |
| Weight per m² | 2.3kg/m² |
| Ordering | By quote, exclusive Australian distributor |
Independently tested material properties
The VLITEX Fire Blanket ULTIMATE is manufactured from materials that have been independently tested against recognised standards.
- High cut resistance – 18.45 N (ISO 13997:1999, tested by STFI) Helps resist damage from sharp battery casings and metal debris
- High electrical resistance 7.7 × 10¹¹ Ω (DIN 54345-1, tested by Hochschule Hof)
- Non-flammable material construction – DIN EN 13501 (MPA)
Tests as stated on manufacturer’s data sheet. For organisations requiring certification details or technical documentation, additional information is available on request.
Reusable Following Inspection
Unlike some specialist fire containment products designed for single deployment, the VLITEX Fire Blanket ULTIMATE may be reused following inspection, depending on the severity of the fire event and resulting blanket condition. NOTE: Following any deployment, the blanket should be assessed before being returned to service.
See also the EV Car Service Set
FAQ
Many fire blankets are designed for vehicle fire containment or general battery fire risks.
The VLITEX ULTIMATE is engineered specifically for environments where technicians may be working directly with exposed battery modules and where the highest levels of temperature resistance may be required.
It provides an additional layer of protection for organisations managing high-risk battery environments where standard EV fire blankets may not offer the same level of thermal performance.
The VLITEX Fire Blanket ULTIMATE is designed for open lithium-ion battery modules > 5kWh, where cells are exposed outside their enclosure. For vehicle incidents, see the Standard for conventional vehicle fires, the Premium and Premium Plus for EV battery fires, or the Superior for sensitive environments where silicone can’t be used. Fire Response is the exclusive Australian distributor, so contact us if you’re unsure which suits your site.
No. The ULTIMATE contains flames, smoke and heat around the module, but it doesn’t stop thermal runaway or extinguish the cells. Thermal runaway can continue beneath it, so follow your site’s emergency procedures, isolate the area and contact emergency services.
Due to the size and weight of the blanket (3m x 4m, 27.6kg), deployment by at least two trained operators is recommended.
About VLITEX
VLITEX is a German manufacturer specialising in lithium-ion battery fire protection solutions. Its product range includes EV fire blankets, battery storage solutions and specialised containment products designed for electric vehicles, battery storage systems, workshops and industrial applications.
