Description
Fire-Resistant Box for E-Bike Batteries up to ~900Wh

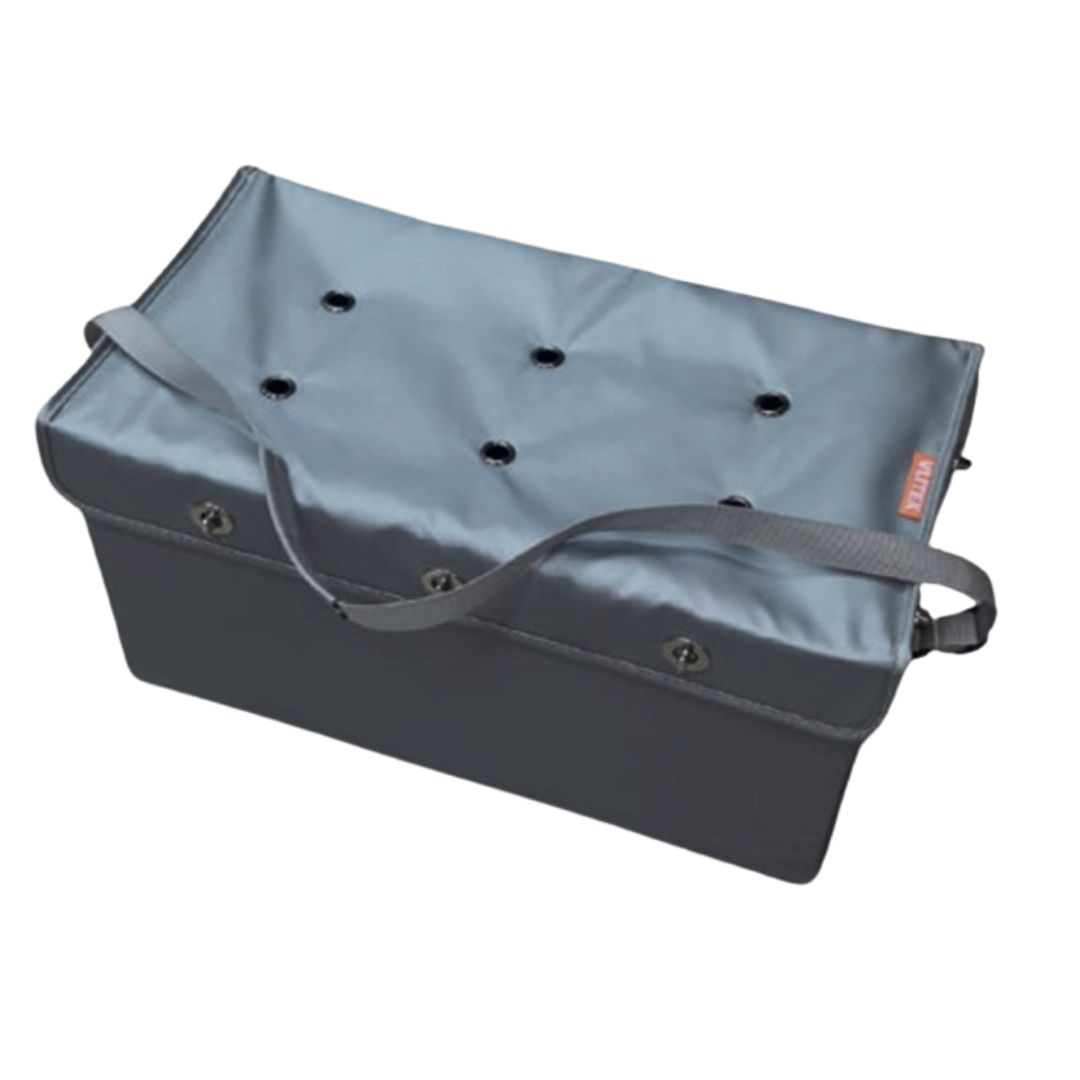

The VLITEX E-Bike Battery Box PLUS is a fire-resistant box for storing, transporting and charging removable lithium-ion e-bike batteries up to 900Wh. Its 10mm multi-layer walls of E-glass fibre and silicone are designed to slow heat transfer and help contain a battery fire. Fire Response is the exclusive Australian distributor, supplying bike retailers, workshops, fleet operators, councils and commercial sites.
Engineered for:
- Charging: a protective enclosure while the battery charges. Confirm cable port and charging approval with VLITEX.
- Storage: a fire-resistant place for spare or removed batteries in workshops, shops and commercial facilities.
- Transport: protection when moving batteries between sites, worksites and retail outlets.
Key Features
- Designed for charging, storing and transporting e-bike batteries
- Suitable for batteries up to approximately 900Wh
- Multi-layer fire-resistant construction, 10mm thick insulated walls
- Premium E-glass fibre and silicone material system
- Long-term temperature resistance up to 600°C
- Short-term temperature resistance exceeding 1,000°C
- Lightweight and portable design
- Helps reduce heat transfer during battery failures
- Suitable for residential, commercial and workshop environments
- Maintenance-free operation
Who it’s for:
- bicycle retailers and repair workshops
- delivery and fleet operators
- e-bike hire operators
- councils and commercial facilities
- individual e-bike owners
| Specification | Details |
|---|---|
| Application | Charging, storage and transport of e-bike batteries |
| Suitable Battery Capacity | Up to approximately 900Wh |
| Construction | Multi-layer E-glass fibre and silicone materials |
| Wall Thickness | 10mm |
| Long-Term Temperature Resistance | Up to 600°C |
| Short-Term Temperature Resistance | Over 1,000°C |
| Dimensions | 54cm × 28cm × 25cm |
| Weight | Approx. 2.5kg |
| Maintenance | Maintenance-free |
Note: the box is fire-resistant, not fireproof. It helps slow heat transfer and contain a battery failure, but it doesn’t prevent one, doesn’t extinguish a fire, and can’t guarantee protection in every incident.
| E-Bike Battery Bag (L / XL) | E-Bike Battery Box PLUS | |
|---|---|---|
| Tested with | 400Wh battery | 950Wh battery |
| Best for | Smaller batteries, portability | Larger batteries up to ~900Wh |
| Weight | 0.9 – 1.05kg | approx. 2.5kg |
| Dimensions | L 44cm × 13cm × 11cm, XL 54cm × 13cm × 11cm | 54cm x 28cm x 25cm |

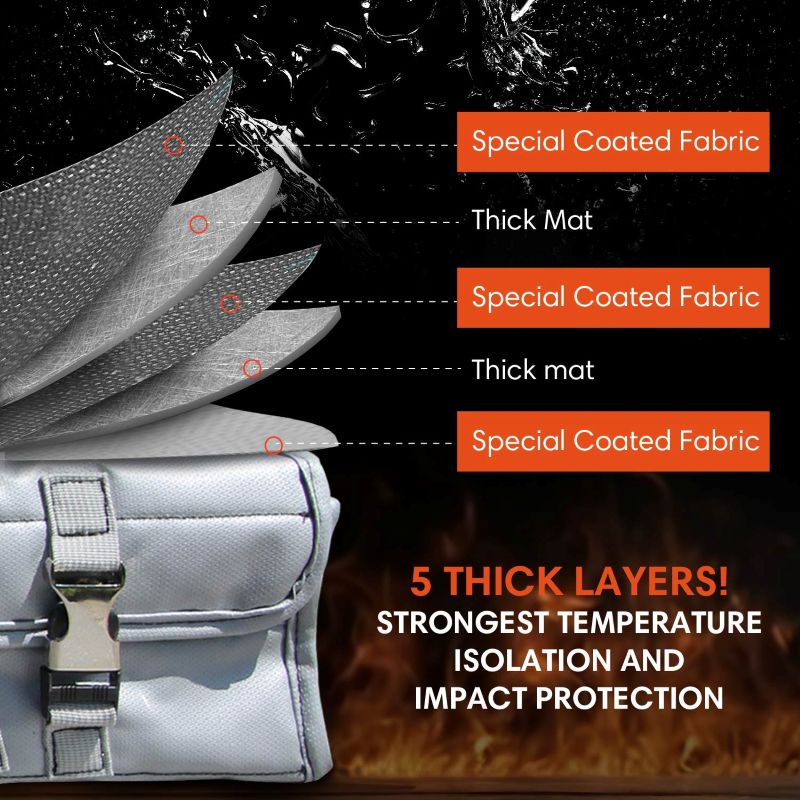

| Design | Five-layer fabric bag, vented lid | 10mm multi-layer walls, venting |
See the E-Bike Battery Bag
FAQ
Yes, the box is designed for charging, with the charger cable routed through [port]. Never leave a charging battery unattended, use the charger supplied for the battery, and follow the battery manufacturer’s instructions.
The bag is lighter and more portable and was tested with a 400Wh battery. The box suits larger batteries up to about 900Wh and was tested with a 950Wh battery. Both are fire-resistant containment products, not extinguishers. See the comparison above.
No. It’s designed to contain flames and heat, reduce smoke and support temperature control outside the bag, minimising the risk of the fire spreading. A battery can continue to burn inside.
Important: Battery fires release toxic fumes. Move quickly away from the source of the fire and alert emergency services.
Note: For bicycles with permanently installed batteries, a VLITEX E-Bike Fire Blanket helps to contain flames and smoke.
Yes, for everyday charging, storing and transporting. After a battery fire, you must replace the box.
About VLITEX
VLITEX is a German manufacturer specialising in lithium-ion battery fire protection solutions. Its product range includes EV fire blankets, battery storage solutions and specialised containment products designed for electric vehicles, battery storage systems, workshops and industrial applications.
