Description

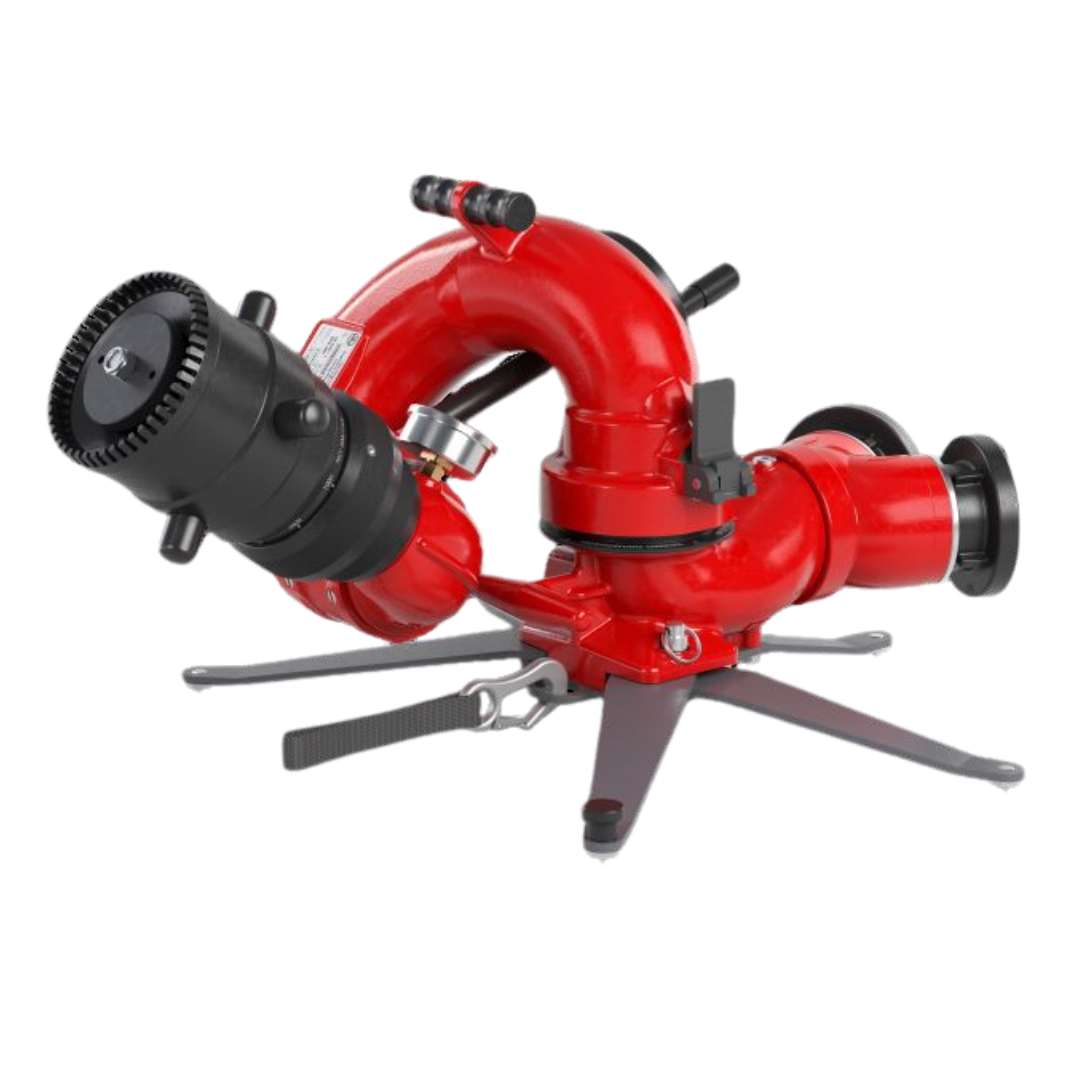

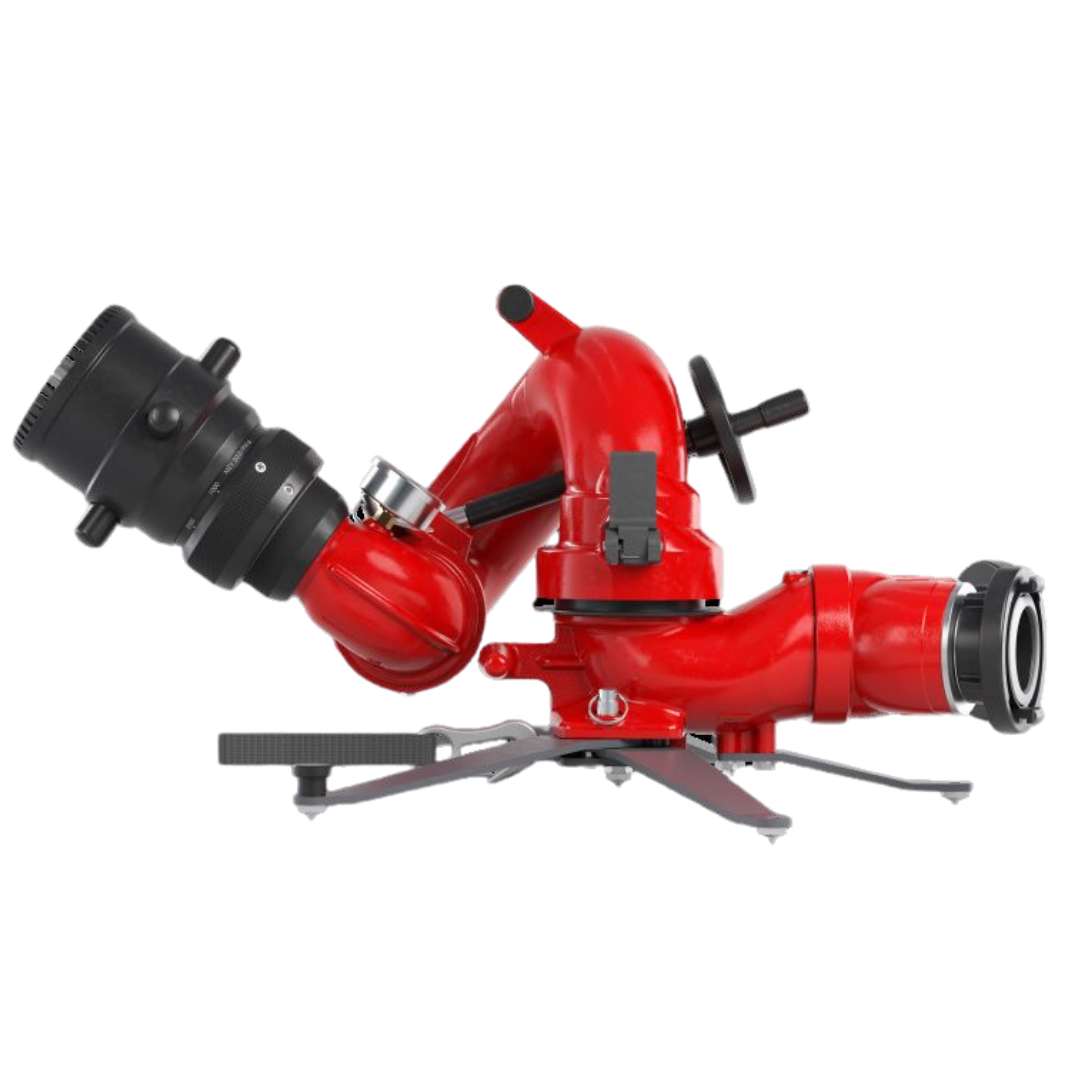

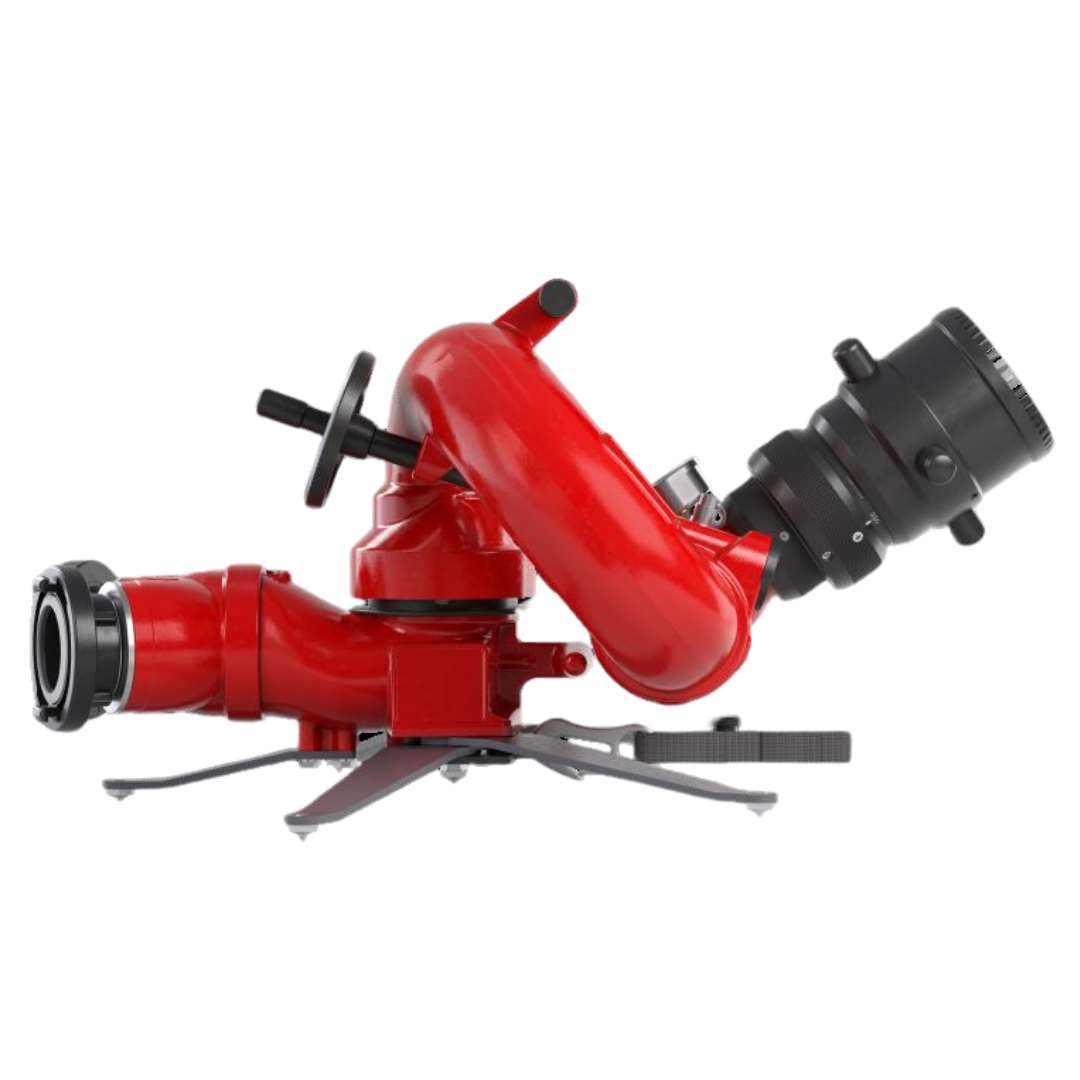

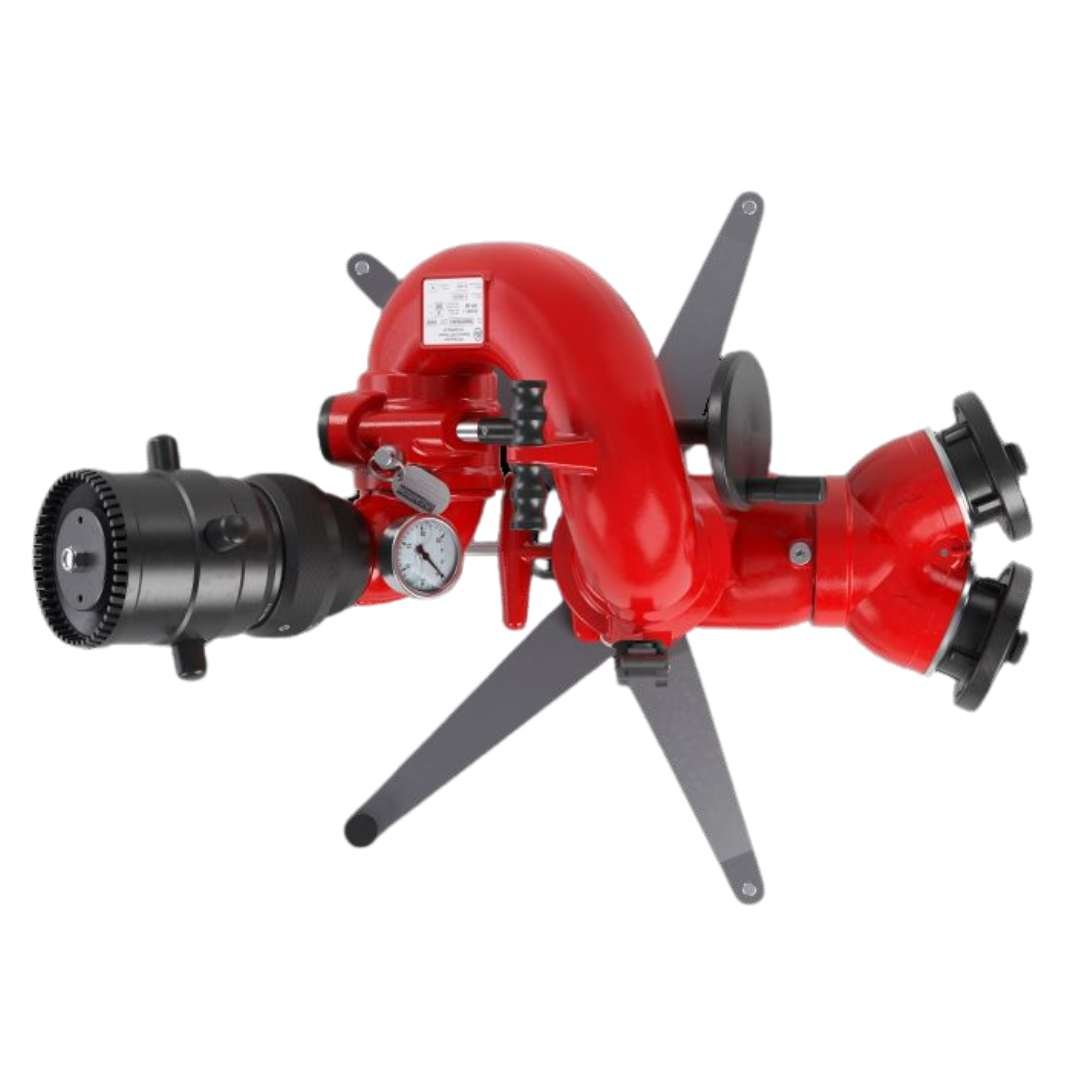

Alco TerraStream 3 Ground Monitor
The Alco TerraStream 3 Ground Monitor is engineered for firefighters who demand speed, strength, and simplicity. This ground monitor redefines operational excellence in modern firefighting, offering unmatched performance, versatility, and reliability.
Key Features
-
High Flow Rate: Delivers up to 5,000 L/min with a low pressure loss of just 2.5 bar at maximum flow.
-
Lightweight Design: Weighs only 7.3 kg for the monitor and 9.3–10.0 kg for the ground base, making it the lightest in its class.
-
Quick Deployment: Features a patented quick-connect system and synchronised legs, enabling full setup in under 60 seconds.
-
Dual Deployment Flexibility: Seamlessly transitions between portable ground base and truck-mounted configurations.
-
360° Horizontal Rotation: Offers full manoeuverability in truck-mounted mode and 180° in portable mode.
-
Durable Construction: Built with anodised aerospace-grade aluminium and powder coating for corrosion resistance.
- Intuitive Controls: Designed to reduce training time and operator stress
Specifications:
| Flow Rate | Up to 5,000 L/min |
|---|---|
| Max Operating Pressure | 16 bar |
| Pressure Loss (at max flow) | 2.5 bar |
| Horizontal Rotation | 360° (truck mount) / ±90° (ground base) |
| Vertical Adjustment | +35° to +90° (−20° to +90° when unlocked) |
| Monitor Weight | 7.3 kg |
| Ground Base Weight | 9.3–10.0 kg |
| Truck Mount Flange Weight | 2.8 kg |
| Material | Anodised aerospace-grade aluminium with powder coating |
| Standard Compliance | DIN EN 15767 |
Applications
The TerraStream 3 Ground Monitor is ideal for various firefighting scenarios, including:
- Industrial Firefighting
- Mining Operations
- Airport Fire Services
- Municipal Fire Departments
- Military and Defense Applications
