Description
Compact Rescue Safety Cushion SMZ 16 for Rapid Emergency Deployment

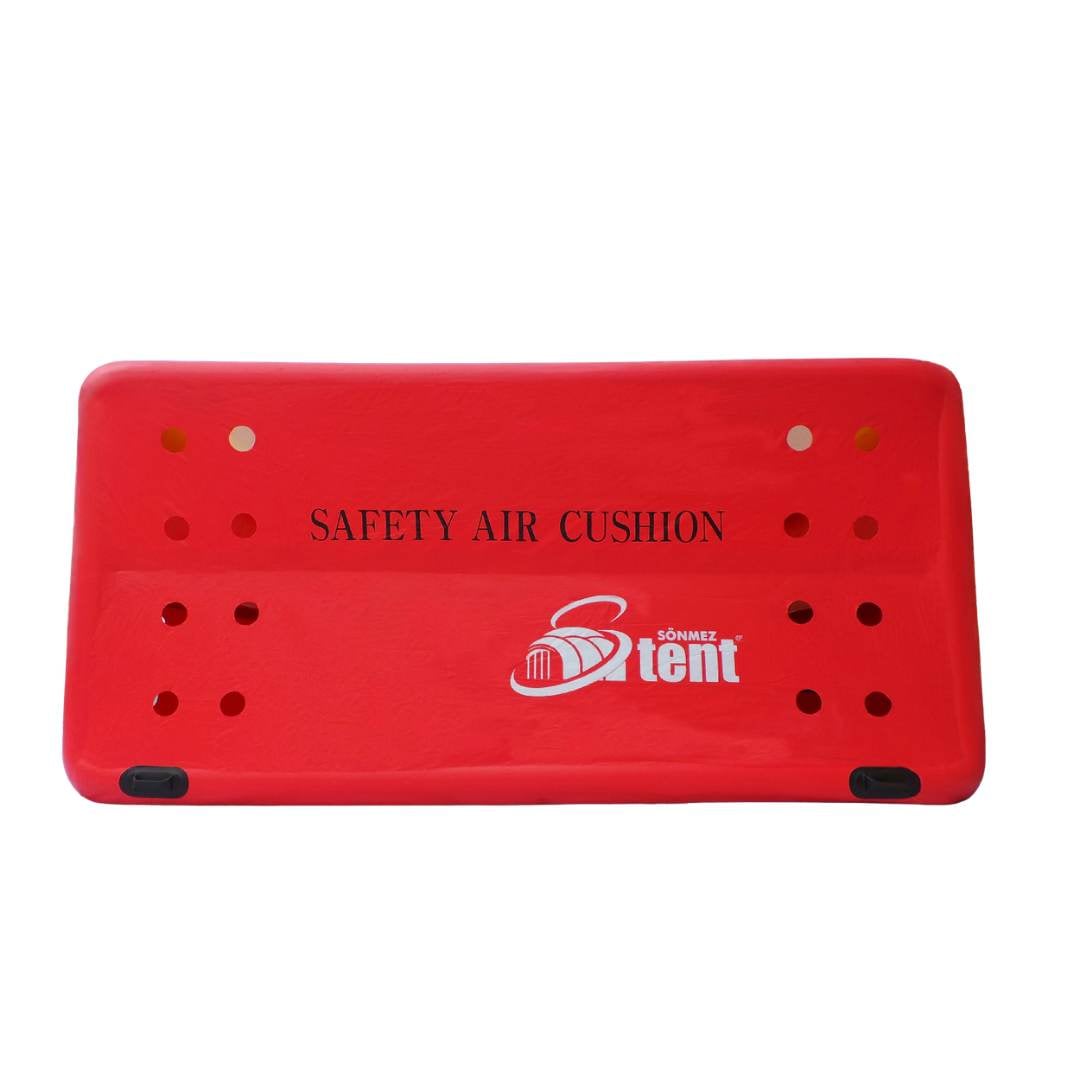

The Sonmez SMZ 16 Safety Air Cushion is a lightweight, rapid-deployment inflatable rescue system designed for emergency evacuation and rescue operations from height. Suitable for fire and rescue services, industrial emergency response teams and specialist rescue units, the SMZ 16 provides a controlled landing area for incidents involving structures up to 16 metres in height.
Designed for single-person use per rescue cycle, the SMZ 16 is the most compact model in the Sonmez Rescue Safety Cushion range. Using a single compressed air cylinder for inflation, the system can be deployed in less than 30 seconds and returns to operational readiness in less than 10 seconds between uses.
Manufactured from durable neoprene-based materials, the cushion is designed to resist moisture, abrasion, tearing and environmental exposure while providing a practical rescue solution where rapid deployment and portability are key considerations.
Key Features
- Maximum operating height up to 16 metres
- Inflation time of 30 seconds or less
- Recovery time of 10 seconds or less
- Single-person use per rescue cycle

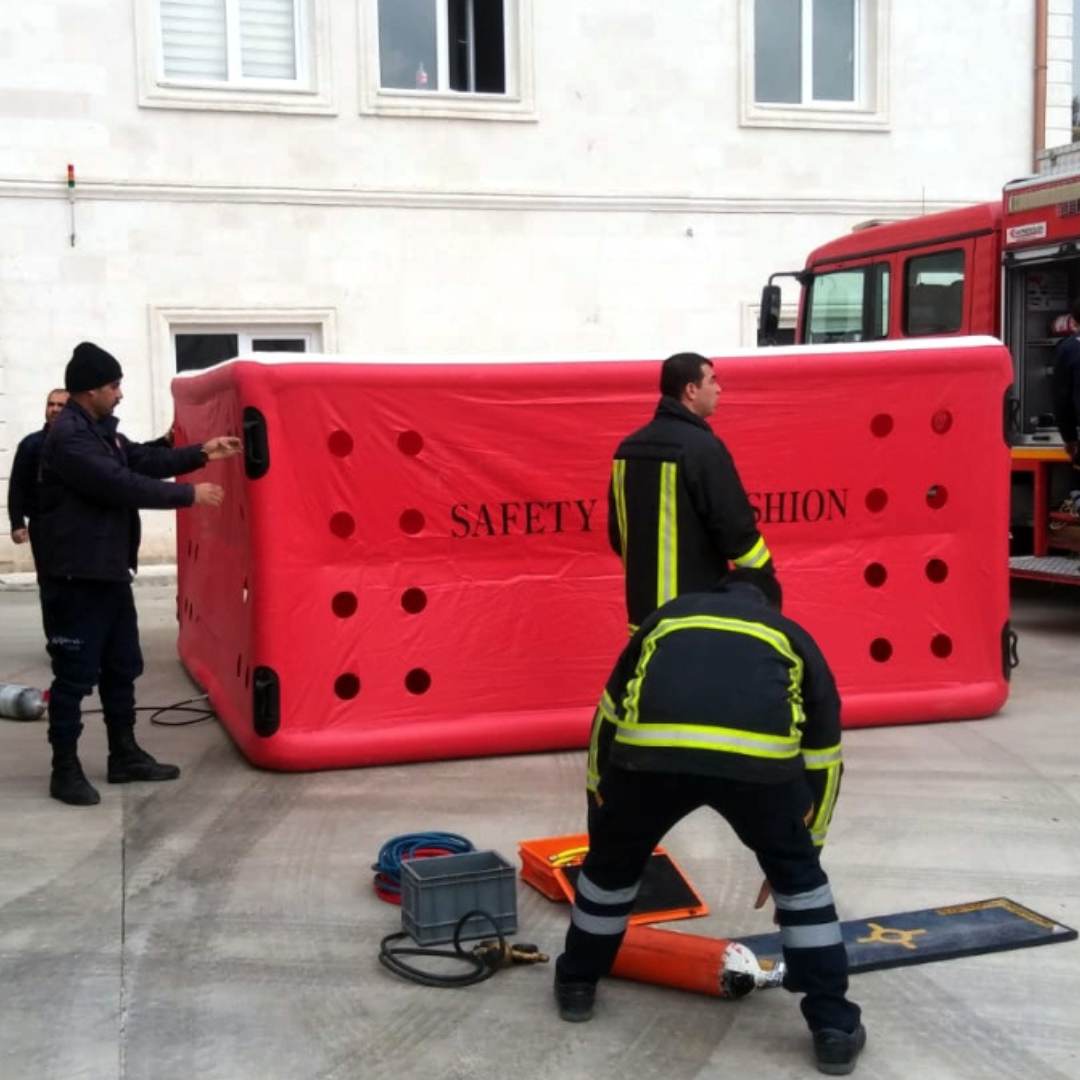

- Minimum two-person operating crew
- Lightweight design
- Compact deployment footprint
- Single-cylinder inflation system
- Durable neoprene construction
- Waterproof, flame-resistant and abrasion-resistant materials
- Resistant to acids and environmental exposure
- Multi-chamber inflatable design
- Automatic air-blocking impact absorption system
- Designated landing zone (drop point)
- High-visibility reflective bands
- Integrated carrying handles
- DIN 14151 T1-T3 compliant
- Includes air cylinder adaptor
How the SMZ 16 Works
The Sonmez SMZ 16 uses a multi-chamber inflatable design to create a controlled landing area during emergency rescue operations.
When a person lands on the cushion, the structure temporarily deforms to help absorb impact forces. An automatic air-blocking system activates during impact, closing the opening to the lower chamber and helping manage the kinetic energy generated by the landing. This assists in reducing rebound while supporting rapid recovery between rescue cycles.

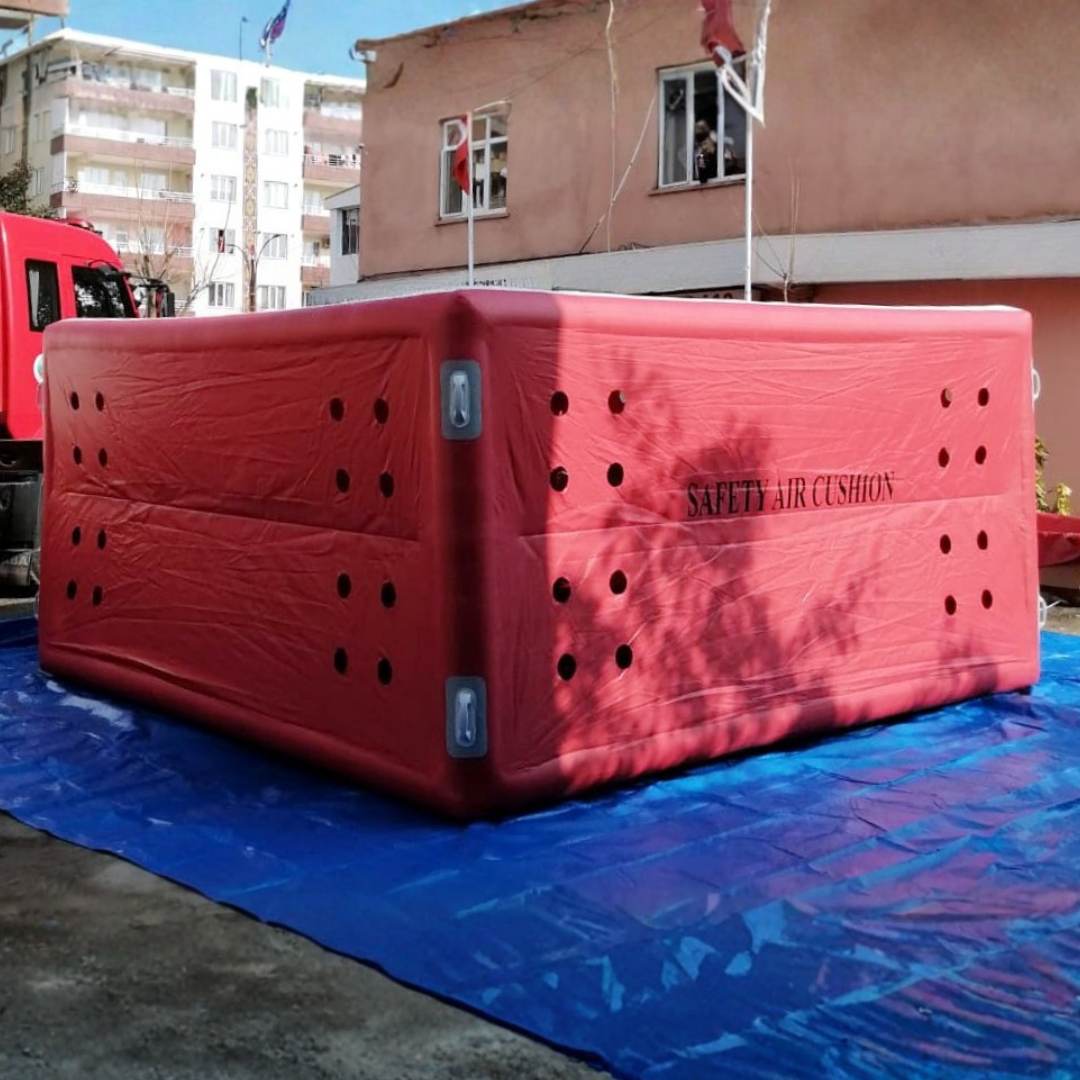

Following use, the cushion automatically returns to its operational shape and can be quickly prepared for the next rescue operation.
Applications
Emergency Rescue Operations from Height
The Sonmez SMZ 20 is suitable for:
Fire and Rescue Services
Emergency Services
Industrial Emergency Response Teams
Mining Operations
Defence Organisations
Commercial Facilities
Specialist Rescue Units
Emergency Response Training Exercises
Why Choose the Sonmez SMZ 16?
The SMZ 16 is designed for organisations requiring a highly portable rescue safety cushion that can be rapidly deployed with minimal personnel and equipment.
With a deployment area of just 4m × 4m, inflation times of less than 30 seconds and a minimum operating crew of only two people, the SMZ 16 provides a practical solution for lower-height rescue scenarios where space and deployment speed are important considerations.
Its compact packed size and lightweight design also make transport and storage easier compared with larger rescue cushion systems.
Technical Specifications
Maximum Operating Height: Up to 16 m
Operating Personnel: Minimum 2

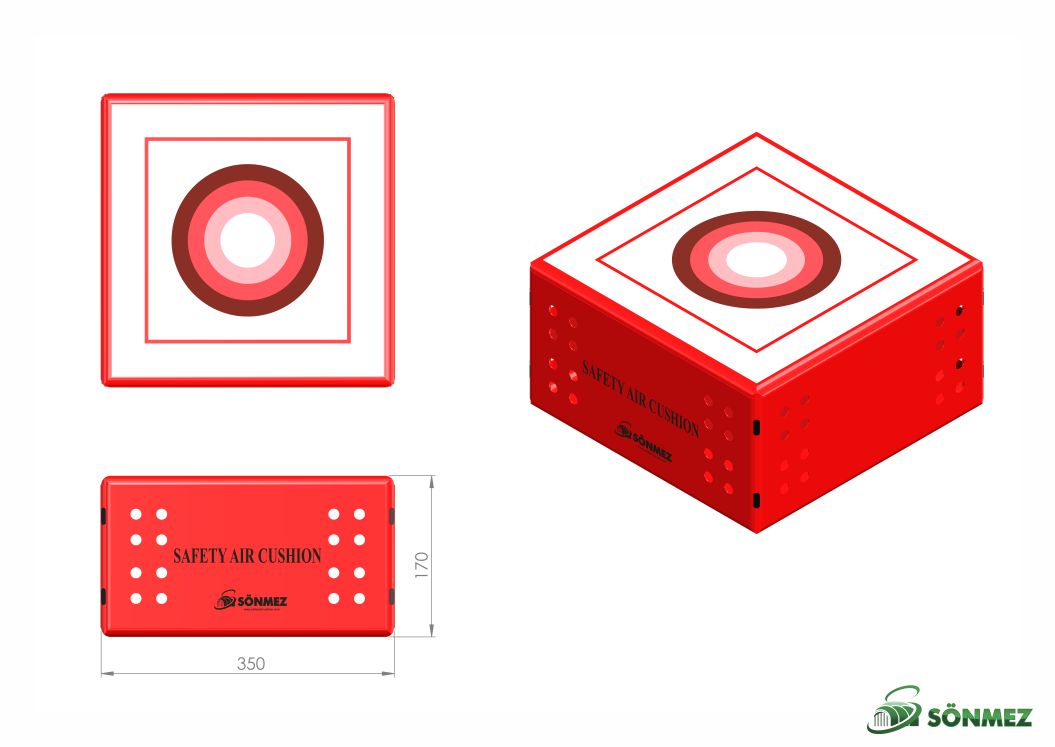

Installed Dimensions: 3.5 m × 3.5 m × 1.7 m
Ground Area Required: Minimum 4 m × 4 m
Weight: 68 kg (±5%)
Working Pressure: 0.3 bar
Inflation Time: ≤ 30 sec
Re-inflation Time: ≤ 10 sec
Temperature Range: -20°C to +50°C*
Capacity: One person per rescue cycle
Compliance: DIN 14151 T1-T3
Air Supply: 1 × 6.0L or 6.8L compressed air cylinders (not included)Shipping Dimensions: 100 cm × 75 cm × 60 cm
Shipping Weight: approx 60 kg
*Based on Australian supplied model specifications.
Included Features:
- Designated landing zone (drop point)
- Reflective visibility bands
- Integrated carrying handles
- Air Cylinder adaptor
- Safety instructions
- Repair kit
FAQ
The SMZ 16 is the most compact and lightweight model in the Sonmez Rescue Safety Cushion range. It requires less deployment space, fewer personnel and only a single air cylinder for inflation.
The SMZ 16 is designed to operate using one 6.0L or 6.8L steel or composite compressed air cylinder. The cylinder is not included.
During impact, the air-blocking mechanism automatically manages airflow between chambers to assist with absorbing kinetic energy and reducing rebound before the cushion returns to its operational shape.
Key considerations include maximum operating height, deployment area requirements, storage space, transport requirements, personnel availability and the types of structures likely to be encountered during emergency response operations. Talk to our team for more information.
Looking for more? See the SMZ 20 for rescue up to 20m
