OS-900-TeC Self Contained System

Description

OS-900-TeC Self-Contained System

Compact, powerful, and built for versatility

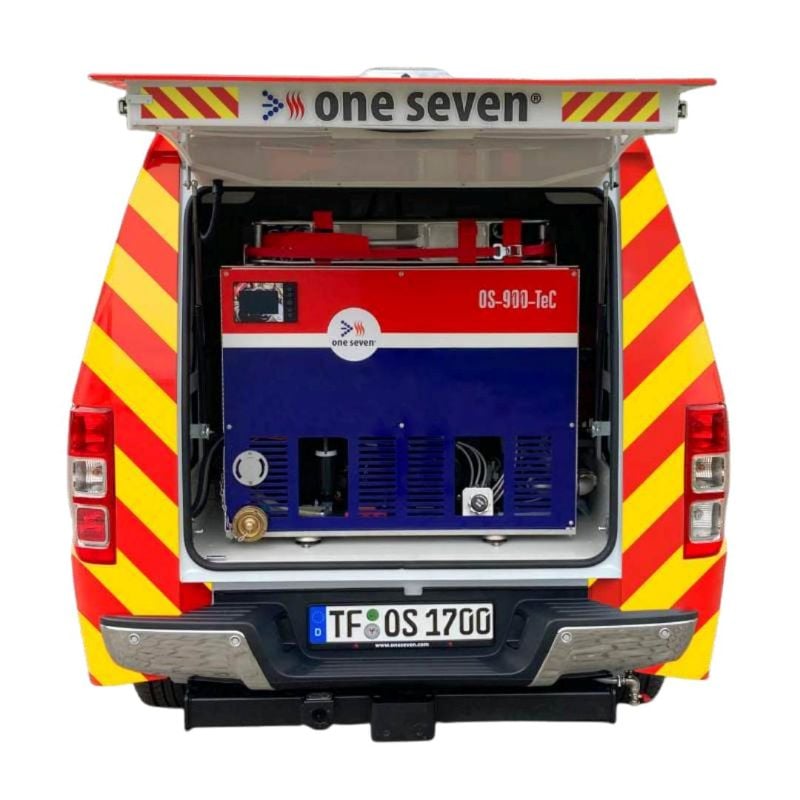

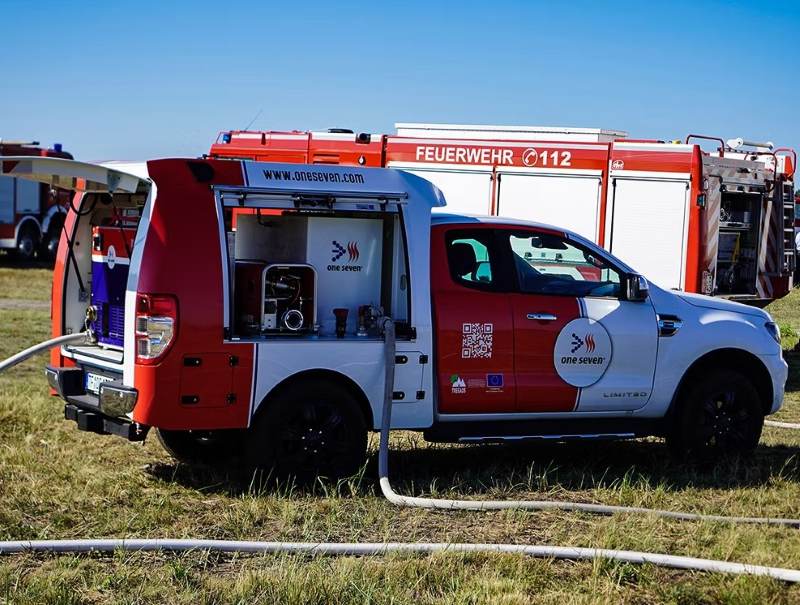

The One Seven OS-900-TeC is a stand alone compressed air foam system powered by a reliable gasoline engine. Its compact design and low weight make it ideal for installation across a wide range of platforms – from 4WDs and pick-ups to trailers, vans, and even marine applications.

As part of the One Seven Self-Contained range, the OS-900-TeC delivers world-class firefighting performance with maximum mobility and ease of use, making it an excellent choice for mining, emergency services, industrial, and remote operations in Australia.

Key System Advantages
  • Flexible all-in-one system – deploy compressed air foam, wetting agent, or water as required
  • Always premium One Seven foam quality – automated regulation ensures consistency
  • One-button operation – unrivalled simplicity and ease of use
  • Automatic flow & pressure monitoring – no operator adjustments needed
  • Flexible installation – control panel can be positioned to suit the vehicle or platform
  • Low water and concentrate consumption – long operating times in the field
Foam & Firefighting Advantages
  • Superior cooling, separation, and coverage – dense, consistent bubble structure
  • Excellent adhesion – foam clings to walls, ceilings, and equipment for insulation
  • Long throw distances – increased firefighter safety and reach
  • Extended delivery lengths & heights – strong performance with normal pumps
  • Lightweight hose handling – foam-filled lines reduce fatigue and increase mobility
Technical Specifications

System Dimensions: 1,030 × 650 × 800 mm
Weight: ~220 kg
Foam Capacity: Up to 900 L/min
Expansion Rate: 7 (wet foam), 20 (dry foam)
Working Pressure: 8 bar
Foam Generator: 1 × 1.5″ mini foam generator
Water Flow: Wet foam up to 130 L/min; water/solution up to 150 L/min
Connections: 1 × 1.5″ suction inlet, 1 × 1.5″ combined outlet
Foam Proportioning System:

  • Water-hydraulically driven proportional dosing pump
  • Flow: 0.02–2.6 L/min at 8 bar
  • Adjustable proportioning rate: 0.2–2.0%
  • Compressed Air Supply
  • C0 (R1) industrial screw compressor, belt-driven
  • Capacity: 780 L/min at 8 bar
  • Max power consumption: 6 kW
  • Water cooling (seawater resistant)

Engine:

  • EFI gasoline engine, 17.2 kW (23 HP)
  • Max torque: 48 Nm @ 3,600 RPM
  • Starter: Electric, 12 V
  • Self-regulating automatic speed control
  • Fuel: External canister (6 L/h consumption at full load)

Water Pump:

  • Single-stage stainless steel centrifugal pump
  • Output: 350 L/min at 8 bar
  • Outlet pressure: max 12 bar

Options:

  • Switchover for hose reel
  • Skid-unit module incl. water tank & hose reel
  • Separate 18 L aluminium fuel tank
  • Fuel pump connection to vehicle tank
  • Internal 12 V battery with alternator connection
  • Optional second control panel for driver’s cabin
Applications

The OS-900-TeC is designed for:
Mining operations – mobile fire protection in remote and rugged terrain
Emergency services – rapid deployment on light vehicles and trailers
Industrial use – flexible retrofit for plant, depots, or service fleets

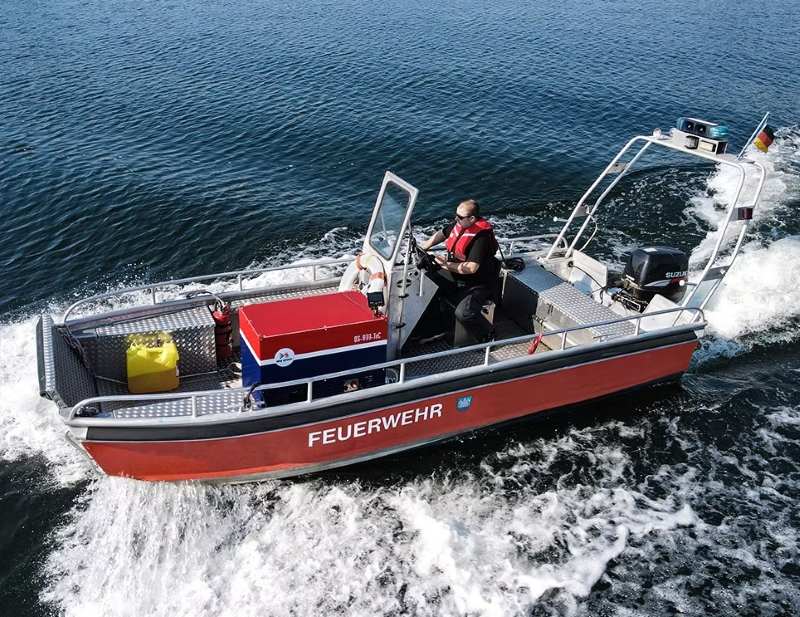

Marine environments – compact firefighting for speedboats and offshore use

Enquire Today – As the exclusive Australian distributor for One Seven, we’re here to help configure the OS-900-TeC for your needs.
Contact us to learn how this system can enhance your response capability.
