One Seven OSP-16i Proportioner

Description

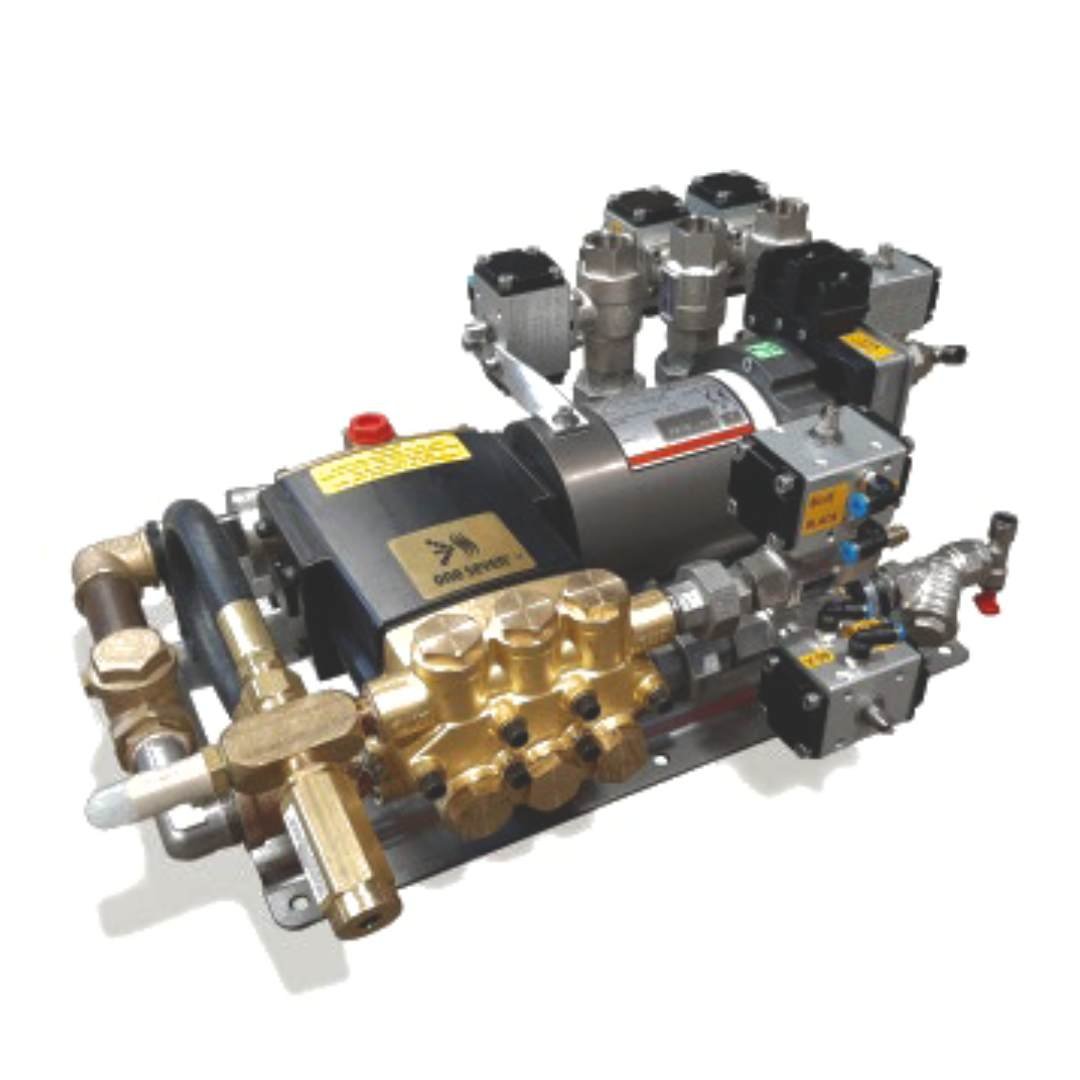

One Seven OSP-16i Proportioner

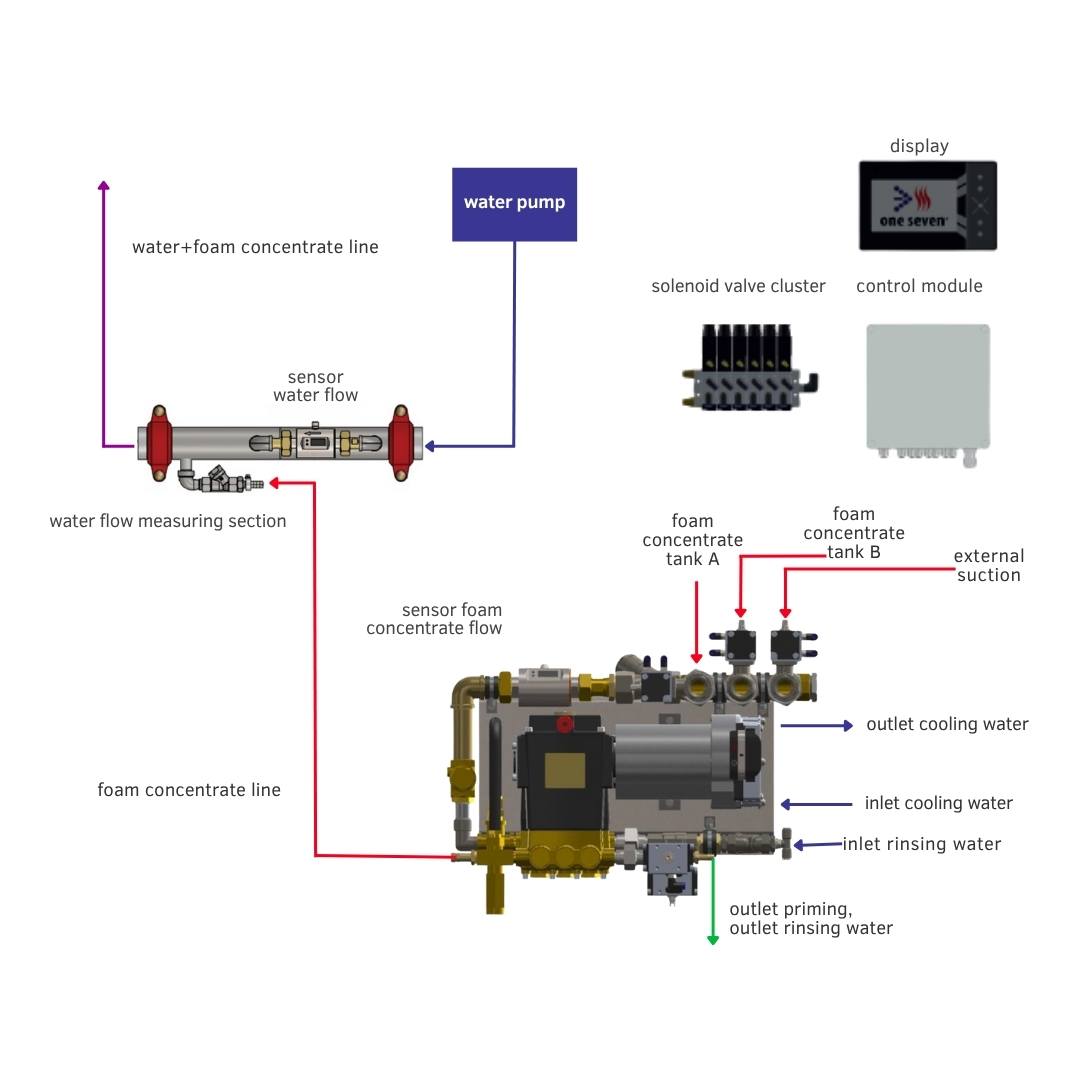

The One Seven OSP-16i is a compact, electrically driven foam proportioning system designed to deliver precise and reliable mixing of foam concentrate and water in firefighting operations. Built with innovative sensor technology, the OSP-16i continuously monitors flow rates and automatically adjusts dosing to maintain the correct proportioning rate. This ensures consistent performance, even when foam concentrate viscosity changes due to temperature fluctuations.

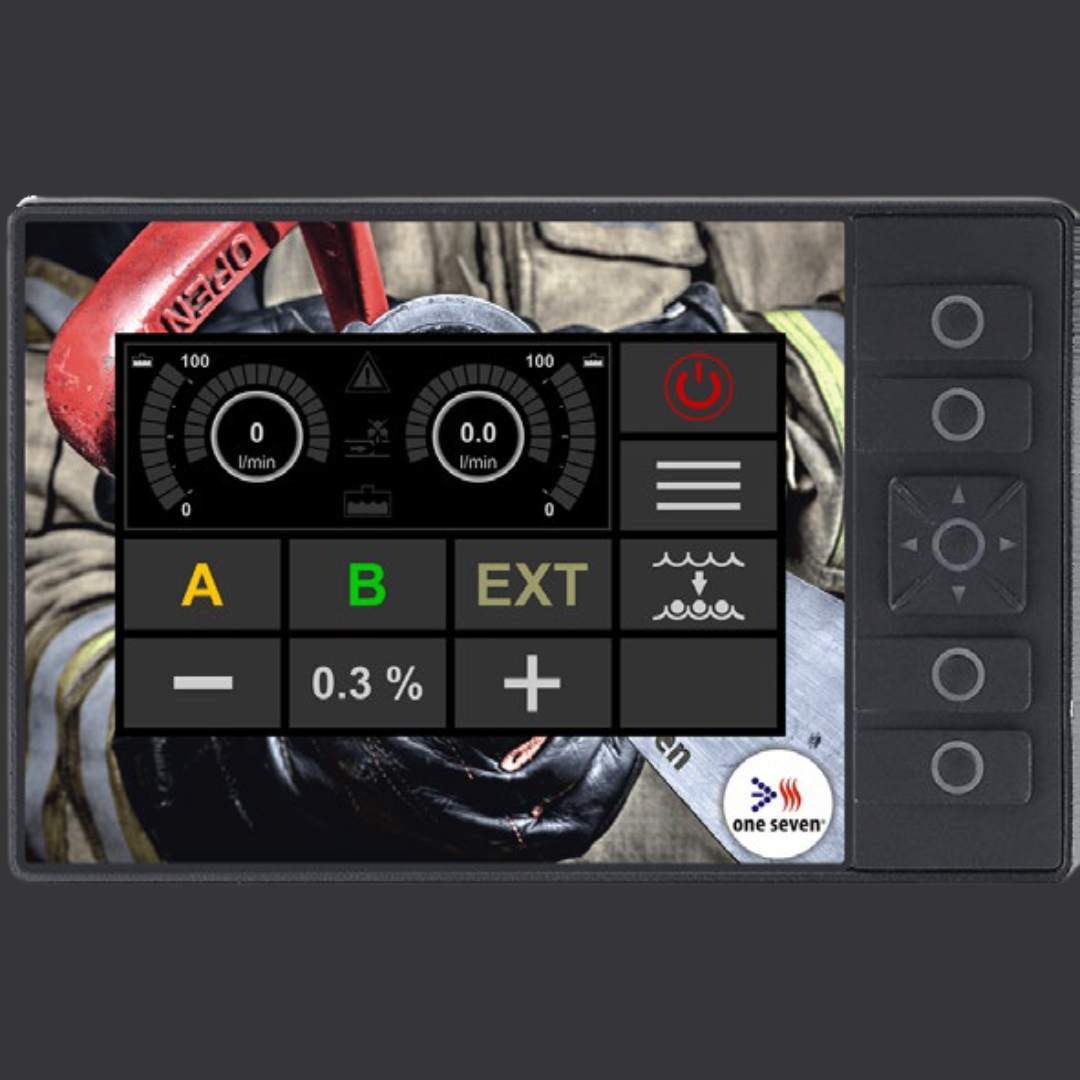

A bright colour display provides intuitive operation and clear monitoring of system data. For maximum reliability, the OSP-16i is equipped with emergency programs that can be activated at the push of a button, ensuring uninterrupted firefighting capability in demanding conditions.

With a flow rate range of 0.2 to 16 litres per minute and an integrated plunger pump compatible with all firefighting foams up to 500 mPa*s viscosity, the OSP-16i offers flexibility across a wide variety of applications.

Optional extras such as tank filling pumps, tank level indicators, and multi-tank changeover valves are available to expand functionality. This allows operators to quickly switch between different foam classes during an operation without manual adjustment.

Key Advantages
  • No calibration required
  • Highly precise proportioning, even at the lowest dosing rates
  • Accurate and reliable flow measurement
  • No manual adjustments when changing foam concentrates
  • Automatic compensation for viscosity changes
  • Fast start-up with automatic priming, rinsing and drainage
  • Fail-safe operation supported by built-in emergency programs
Technical Specifications
  • Standard: EN 16327 – PPPS 1600/0.1-1.0
  • Drive: Electric brushless synchronous motor, 1 kW, CAN bus controlled
  • Pump: Brass plunger pump
  • Cooling: Water cooled
  • Lubrication: Oil
  • Working pressure: Max. 16 bar
  • Voltage: 24 V DC
  • Power consumption: Max. 40 A (at max. working pressure, foam dependent)
  • Water sensor: Magnetic-inductive flow meter, 50 … 2,000 L/min
  • Foam concentrate sensor: Magnetic-inductive flow meter
  • Flow rate: 0.2 … 16 L/min at 10 bar
  • Proportioning rate: 0.1 … 9.9 %, continuously adjustable
  • Weight: Approx. 20 kg
  • Dimensions (L x W x H): 515 x 410 x 210 mm
Connections
  • Foam concentrate inlet: 25 mm hose connection
  • Foam concentrate outlet: 13 mm hose connection
  • Rinsing inlet: 8 mm hose connection (quick connector)
  • Priming outlet: 9 mm hose connection
  • Water cooling: 8 mm hose connection (quick connector)
Optional Configuration
  • Alternative water sensors:
    • 15 … 900 L/min
    • 100 … 3,200 L/min
  • Changeover valves for two or three foam concentrate inlets
  • Connection for up to two tank filling pumps
  • Connection for up to two tank level indicators
  • Intensive rinsing connection at the changeover valve
  • 7” touchscreen display option
Applications

The One Seven OSP-16i is ideally suited for firefighting vehicles, fixed foam systems, and industrial fire protection across Australia. Its automated accuracy and reliability make it a valuable addition for emergency services, mining operations, and facilities where high-performance compressed air foam systems are required.

Enquire Today
As the exclusive Australian distributor for One Seven, Fire Response can help configure the OSP16i to meet your exact needs.
Contact us today to learn more about how this innovative system can enhance your firefighting capabilities.
