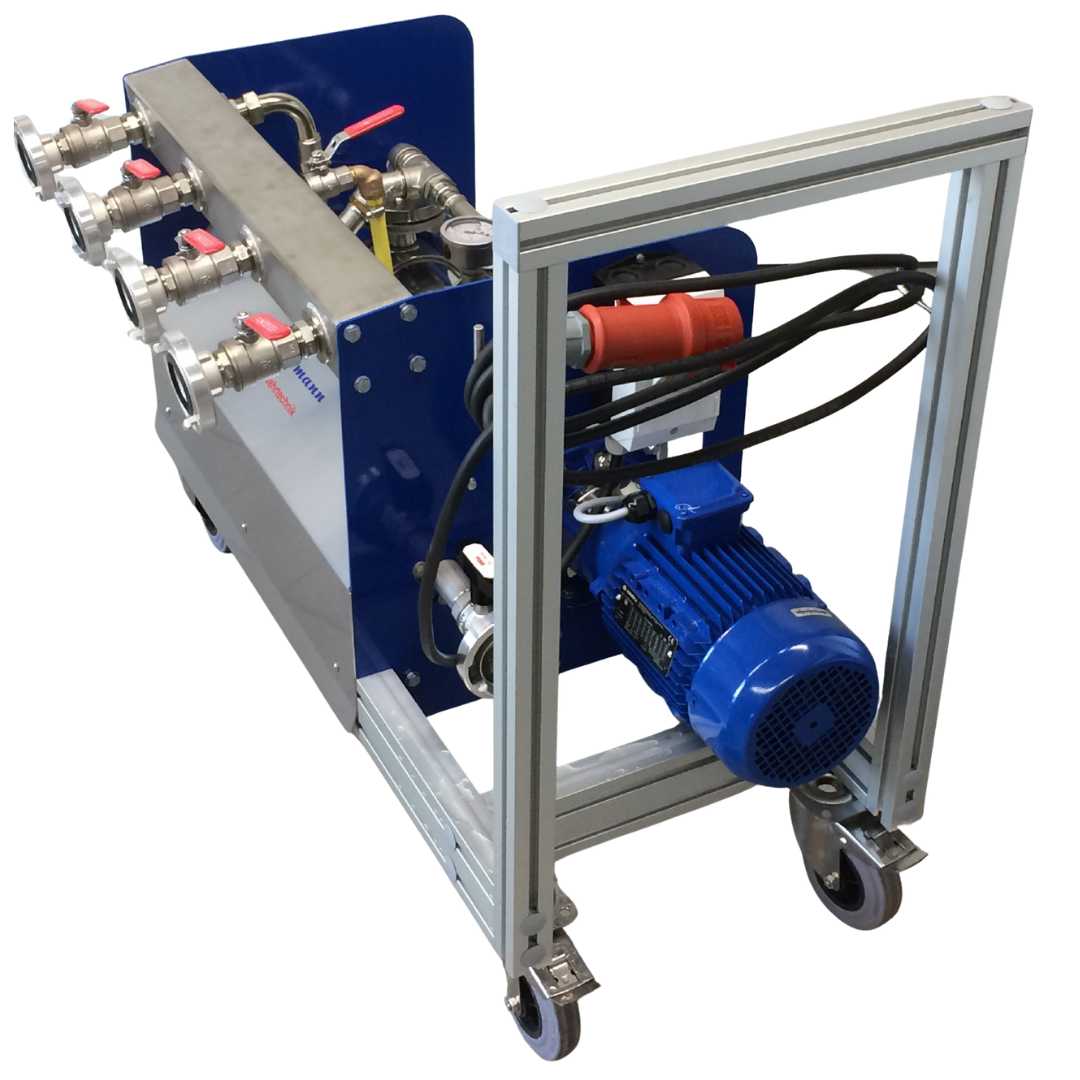

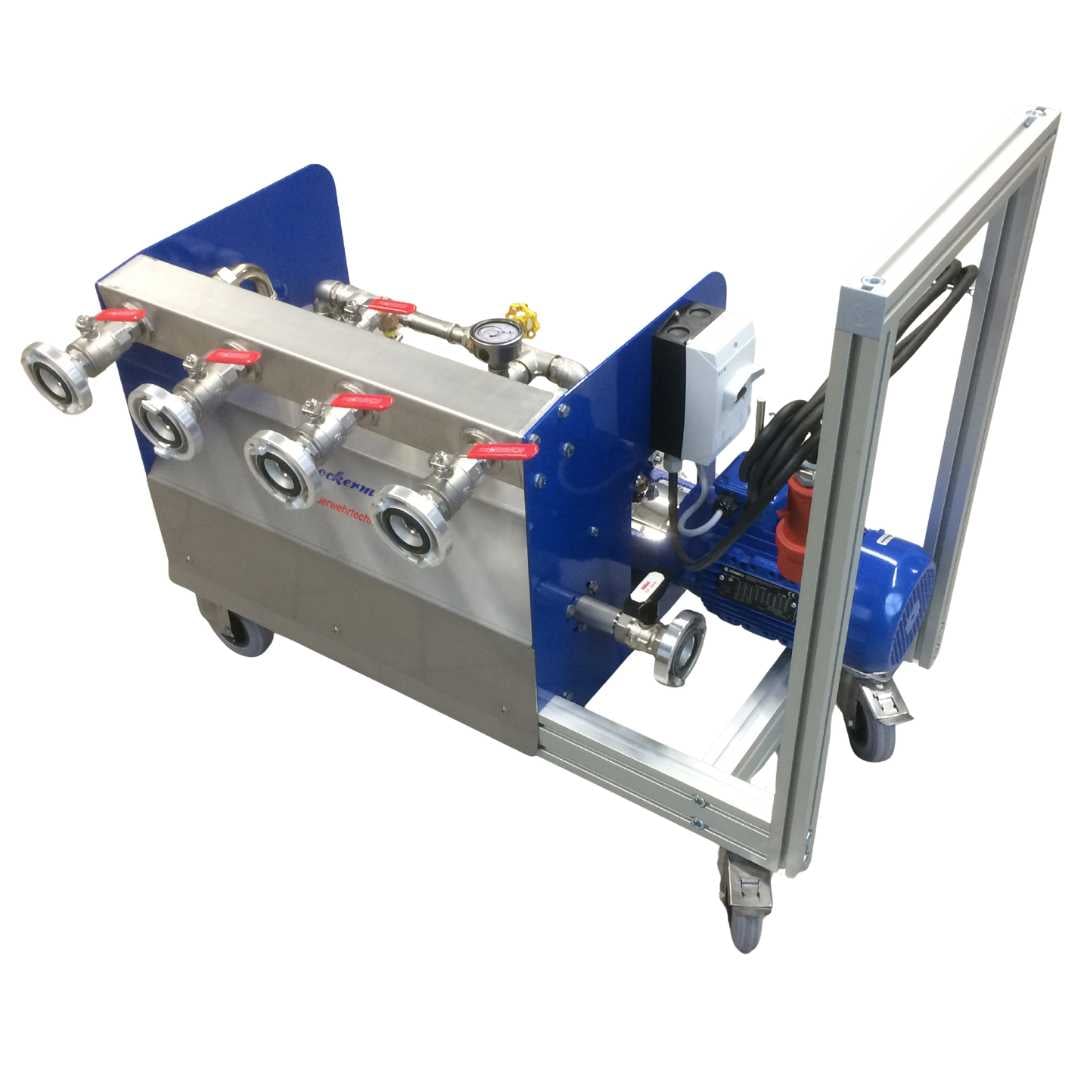

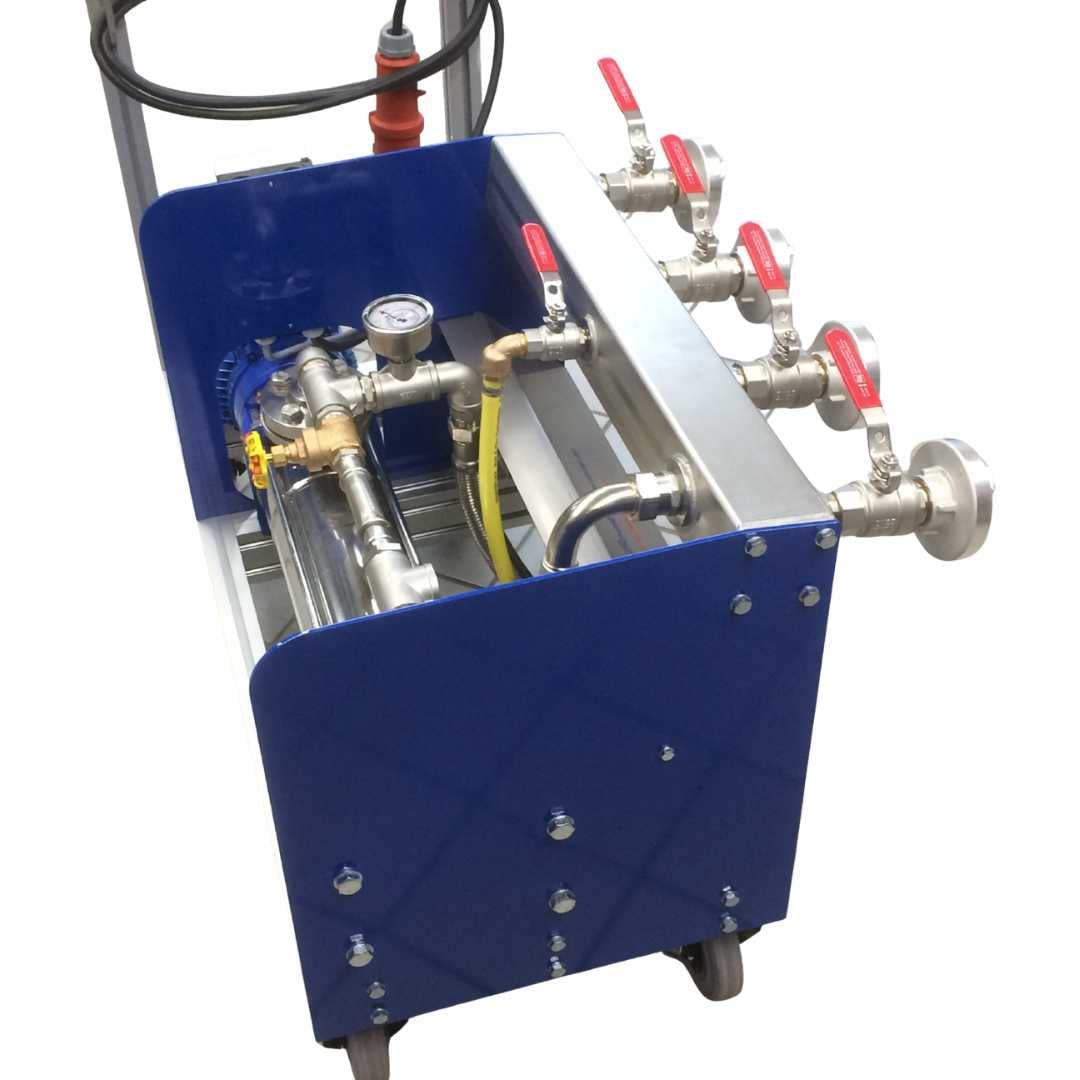

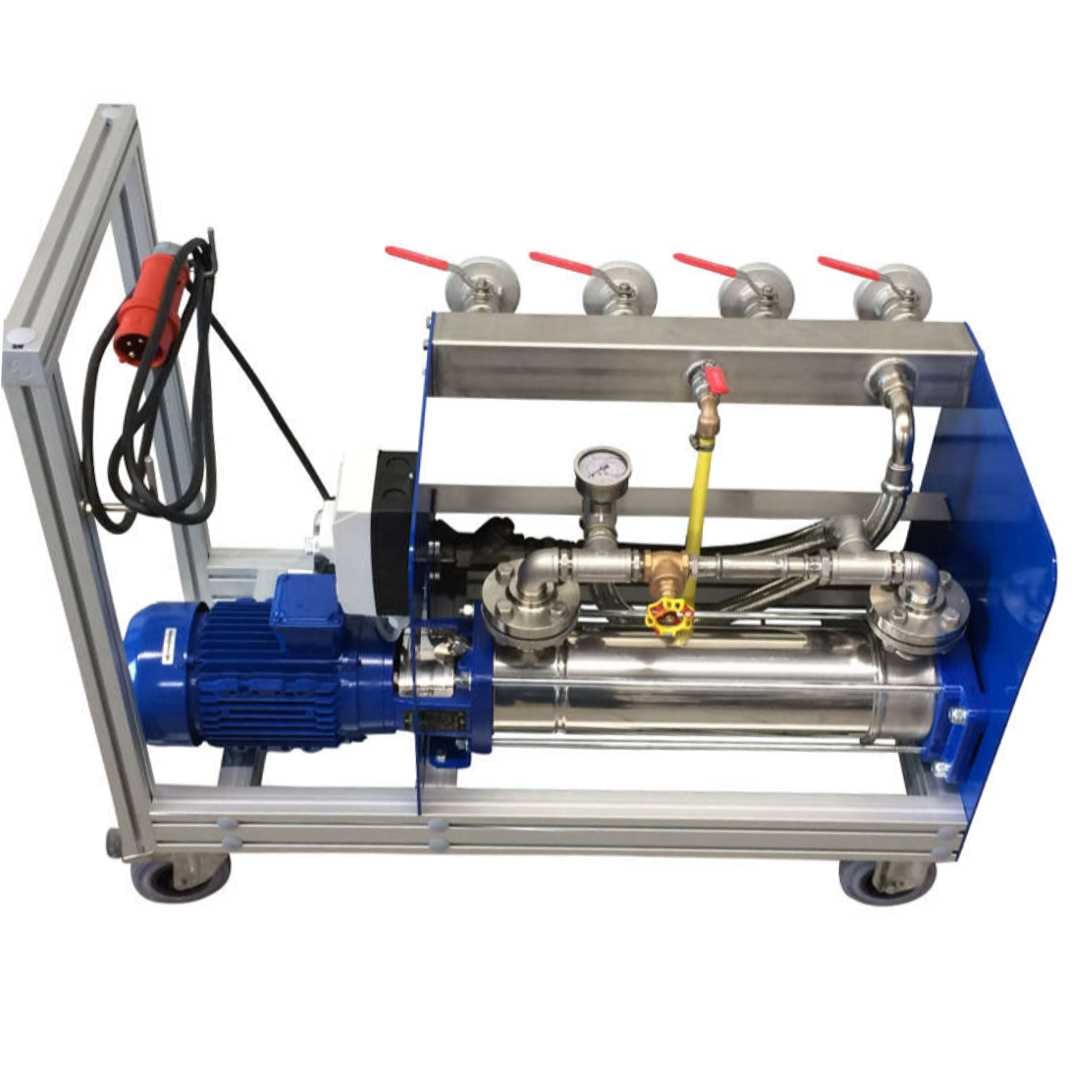

Fire Hose Tester

The Bockermann SP 710-24 Fire Hose Tester is a professional fire hose pressure testing system designed for the inspection, maintenance and pressure testing of firefighting hoses. Suitable for fire brigades, emergency services, industrial facilities, mining operations and defence organisations, the SP 710-24 provides reliable testing of fire hoses at pressures up to 24 bar.

Its compact footprint makes it particularly suitable for small to medium-sized fire stations and workshops where available space is limited. The robust construction incorporates a stainless steel high-pressure centrifugal pump, stainless steel manifold, and anodised aluminium frame for long-term durability and corrosion resistance.

Features

• Test pressures up to 24 bar
• Suitable for testing fire hoses from Storz D25 to B75 sizes
• High-pressure centrifugal pump
• Stainless steel pump housing and internal components
• Stainless steel pressure manifold with four Storz C outlets
• Pressure gauge (0–25 bar)
• Manual pressure regulating valve for precise pressure adjustment
• Pressure relief valve
• Anodised aluminium base frame
• Integrated push handle for mobility
• 3.0 kW three-phase motor (400 V / 50 Hz)
• Storz C water inlet with shut-off ball valve
• 16 A CEE electrical connection
• Durable blue powder-coated finish

Specifications

Maximum Test Pressure: 24 bar
Hose Sizes: Storz D25 to B75
Pump Type: High-pressure centrifugal pump
Pressure Gauge: 0–25 bar
Motor: 3.0 kW, 400 V, 50 Hz
Water Inlet: Storz C
Electrical Connection: 16 A CEE Plug
Dimensions: 1230 × 600 × 910 mm
Weight: Approx. 105 kg

Optional Equipment:

Adjustable contact pressure gauge with automatic pressure shut-off
Automatic hose air-release valves (ELV) for Storz A, B and C systems

Notes on Optional Automatic Air Release Valves:
The optional ELV automatic air-release valves simplify hose testing by automatically venting air from the hose during filling. The valve remains open during filling and closes automatically as water pressure increases, helping to streamline the testing process and improve efficiency.

Applications
The SP 710-24 is suitable for:

• Fire brigade hose testing programs
• Fire station workshops
• Industrial fire protection systems
• Mining emergency response teams
• Defence firefighting units
• Marine and port firefighting operations
• Fire equipment service and maintenance providers

Need to clean your hoses? See our Hose Washing Machine here
