Digital Backflow Prevention Device Tester GIDBT1

Digital Backflow Prevention Device Tester GIDBT1

Description

Backflow Prevention Device Tester

Next generation, highly accurate Digital Backflow Prevention Device Tester Kits. Rugged, compact, portable and simple to use. Essential for accurately testing the Backflow Prevention Device on the water supply of buildings.

Suitable for testing all testable backflow prevention devices to AS/NZS 2845.3:2020

Digital Output

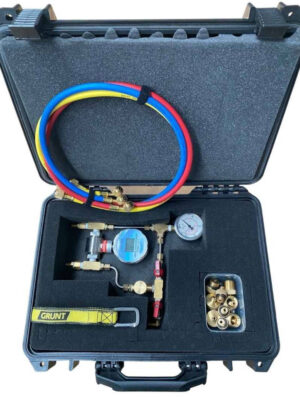

Kit contains:

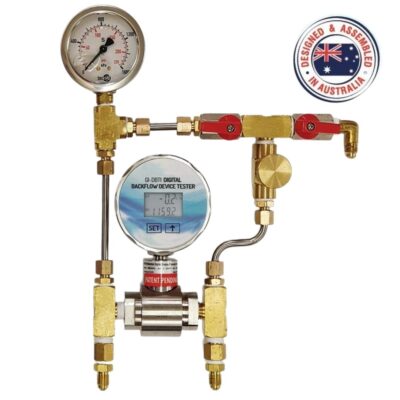

  • Digital Differential pressure gauge – 316 Stainless Steel body complete with Brass fittings and valves
  • Hoses x 3 – Reinforced neoprene (high pressure) with knurled brass connectors
  • Knurled Brass Fittings complete with O-rings for easy installation – 1/8″ 1/4″ 1/2″ 3/4″
  • Velcro Strap with hook
  • Operating Instructions
  • Calibration Test Certificate tested to AS/NZS 2845.3:2020
  • Quality padded impact resistant carry case

Features:

  • Durable stainless steel/brass construction
  • High accuracy
  • No moving parts, hysteresis, parallax error or corrosion
  • Complies for all hazard rating backflow device testing
  • Quality padded impact resistance case
  • Warranty 12 months from purchase date

Specifications:

Range: 0/1000 kPa
Accuracy:         +/- 1% (or better – 0/100 kPa)
Resolution: 0.1 kPa
Temperature Operating Range: -30/80 °C
Over Pressure Rating: 2000 kPa
Relative Humidity: 0/80% RH
Power Supply: Long Life Lithium Battery
Protection Class: IP65

Contact us to find out more about this unique tool.
