Striker Low Expansion Branchpipe

Low Expansion Branchpipe

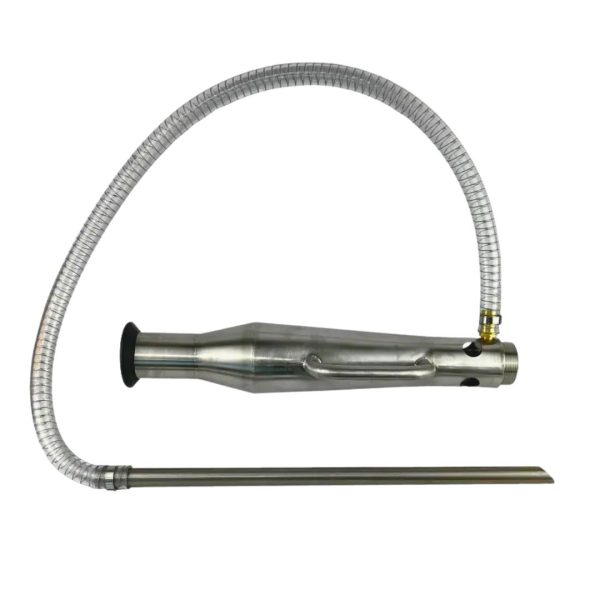

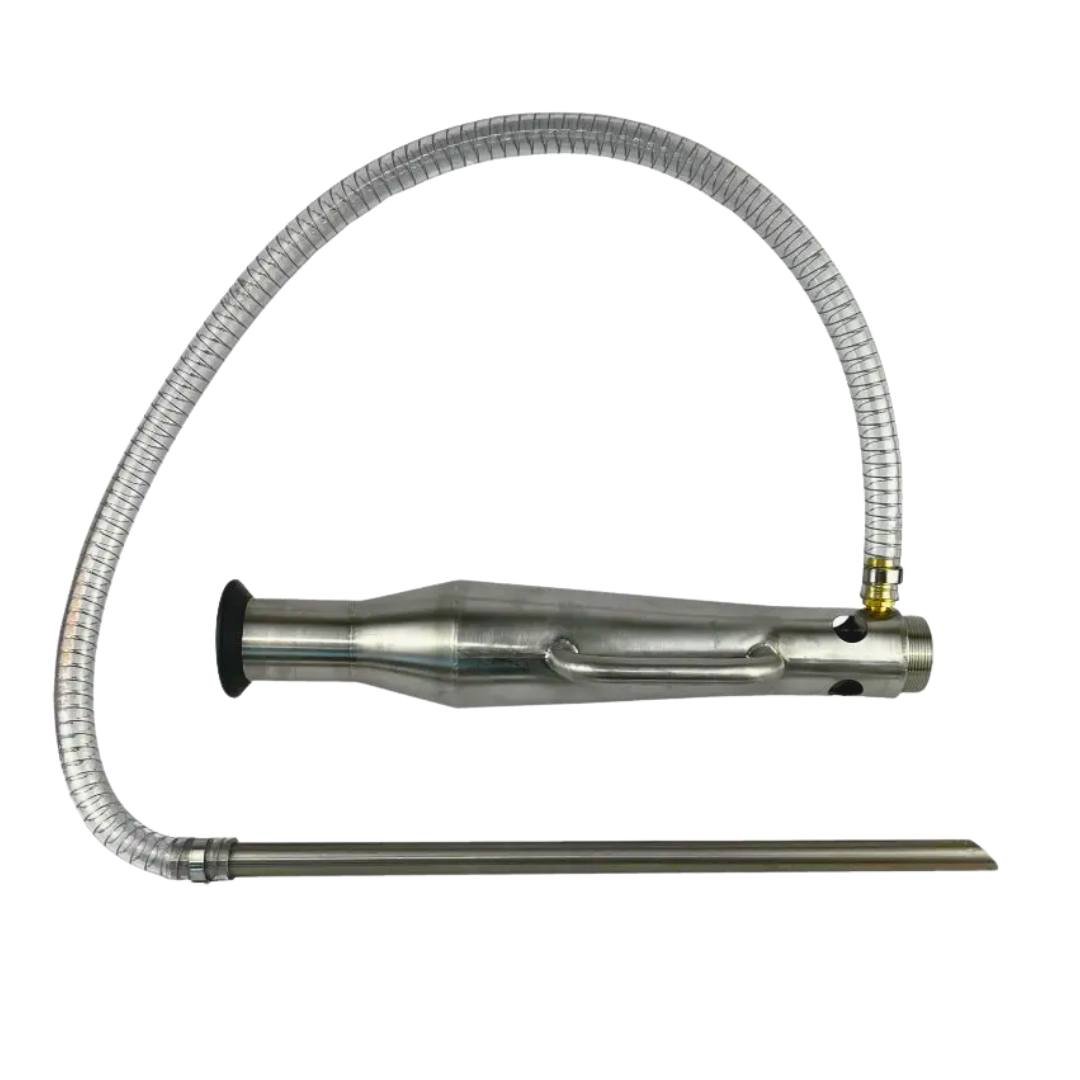

The Striker Low Expansion Branchpipe (Mines Special) is an Australian-made foam branchpipe that is specifically designed for use in mining applications. All parts are made of stainless steel or gunmetal, making it safe for mining use.

Available with variable foam induction of either 3% or 6%.

Specifications:

• 50mm BSP male inlet
• Self-educting with foam pickup tube at 3%/6% adjustable induction,
• 316 stainless steel,
• 500mm long with 1,750mm long clear foam pickup tube

Nominal Flows and Range:

@3.5 bar pressure – 187 LPM nominal flow – 12m range
@5.3 bar pressure – 230 LPM nominal flow – 17m range
@7.0 bar pressure – 265 LPM nominal flow – 20m range
