OS-800-TPlus Self Contained System

Description

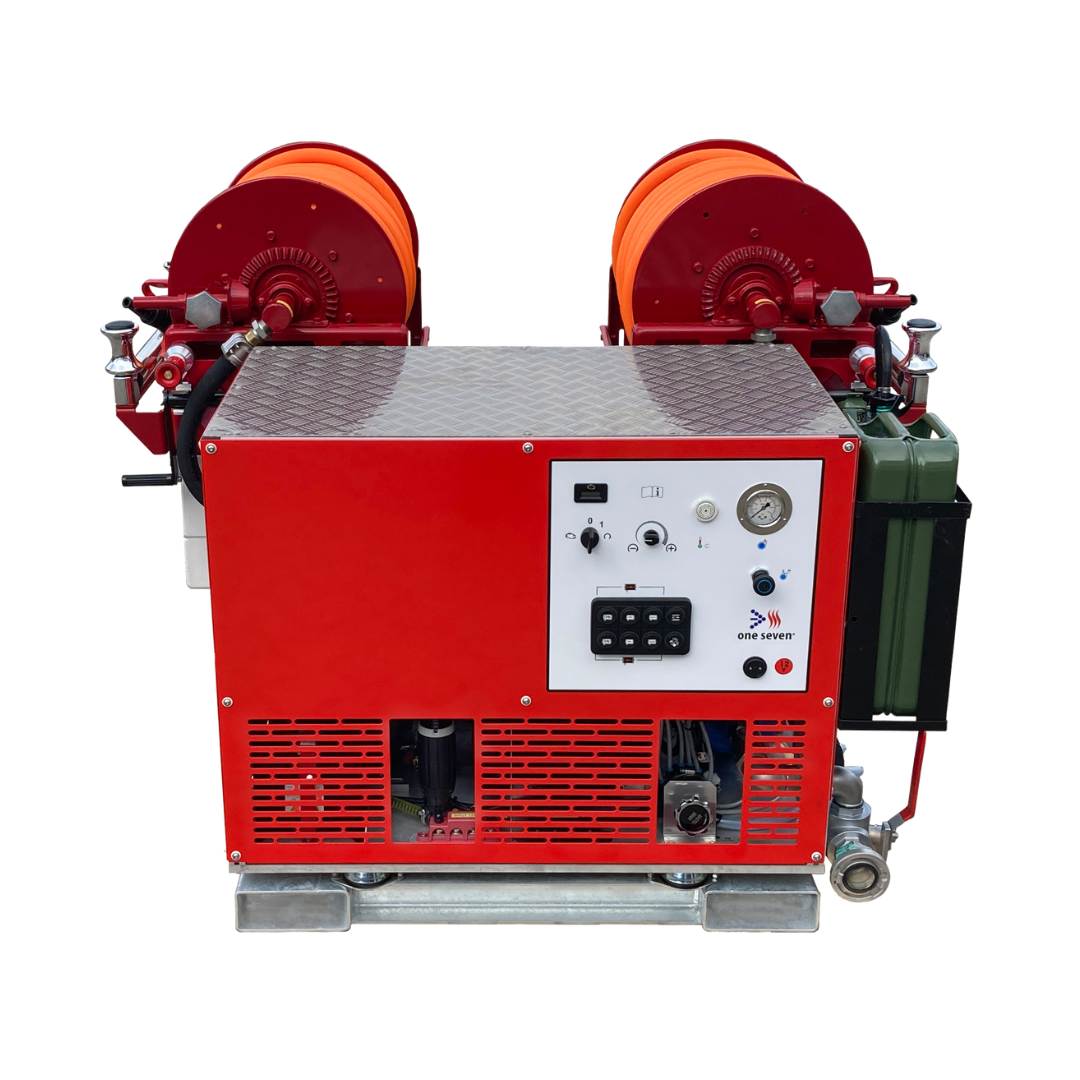

One Seven OS-800-TPlus Self-Contained CAFS

Compact, CAFS for rapid mobile fire response

The One Seven OS-800-TPlus is a compact, self-contained compressed air foam system designed to bring CAFS capability to smaller, highly mobile firefighting vehicles and platforms.

With its own petrol engine, water pump, compressor and foam proportioning system, the OS-800-TPlus does not require a PTO-driven pump. Its compact size and approximately 195 kg weight make it suited to installation in utes, 4WDs, vans, trailers and other mobile firefighting configurations.

For mining, emergency response and industrial firefighting, this creates a highly mobile system capable of reaching rugged, remote and hard-to-access locations where larger firefighting vehicles may be less practical.

The OS-800-TPlus delivers up to 800 L/min of compressed air foam through two 400 L/min outlets, providing substantial firefighting capability from a compact system.

Built for Rapid Mobile Fire Response

The compact OS-800-TPlus allows compressed air foam capability to be installed on smaller, more manoeuvrable vehicles and trailers.

This makes it particularly suited to:

  • Mining and remote-area fire response
  • Ute and 4WD firefighting vehicles
  • Rapid intervention vehicles
  • Emergency services
  • Industrial fire response
  • Firefighting trailers
  • Marine firefighting applications

OS-800-TPlus System Advantages

  • Self-contained CAFS – integrated engine, water pump, compressor and foam proportioning system
  • Up to 800 L/min foam capacity – two outlets delivering up to 400 L/min each
  • Compact and lightweight – approximately 195 kg with a 1,030 × 650 × 800 mm footprint
  • Simple operation – designed around straightforward system control
  • Automatic regulation – flow and pressure are automatically monitored and regulated
  • Flexible firefighting capability – compressed air foam, wetting-agent solution or water
  • Adjustable foam proportioning – stepless adjustment from 0.2–2.0%
  • Mobile installation options – suited to compact vehicle, trailer and skid-unit configurations
Firefighting Advantages of One Seven CAFS

The One Seven compressed air foam process creates a homogeneous foam structure designed to provide effective cooling, separation and surface coverage.

The foam adheres to vertical and overhead surfaces, supporting prolonged contact with the material being protected. Compressed air foam also allows long throw distances, while the reduced water content results in lighter hose lines compared with water-filled hose.

Technical Specifications

SpecificationOS-800-TPlus
Maximum foam capacityUp to 800 L/min (2 × 400 L/min)
Wet foam expansionApprox. 7:1
Working pressure8 bar
Dimensions1,030 × 650 × 800 mm
WeightApprox. 195 kg
Foam generators2 × 1.0″ compact foam generators
Wet foam water flowUp to 100 L/min (2 × 50 L/min)
Solution water flowUp to 110 L/min (2 × 55 L/min)
Foam proportioning0.2–2.0%, steplessly adjustable
CompressorIndustrial screw compressor
Compressor capacity780 L/min at 8 bar
EngineEFI petrol, 17.2 kW / 23 HP
Water pumpSingle-stage centrifugal pump
Pump output350 L/min at 8 bar
Outlets2 × 1.0″ combined outlets

Enquire Today
As the exclusive Australian distributor for One Seven, Fire Response can help configure the OS-800-TPlus to meet your exact needs.
Contact us today to learn more about how this innovative system can enhance your firefighting capabilities.

See the OS-900-TPlus here
