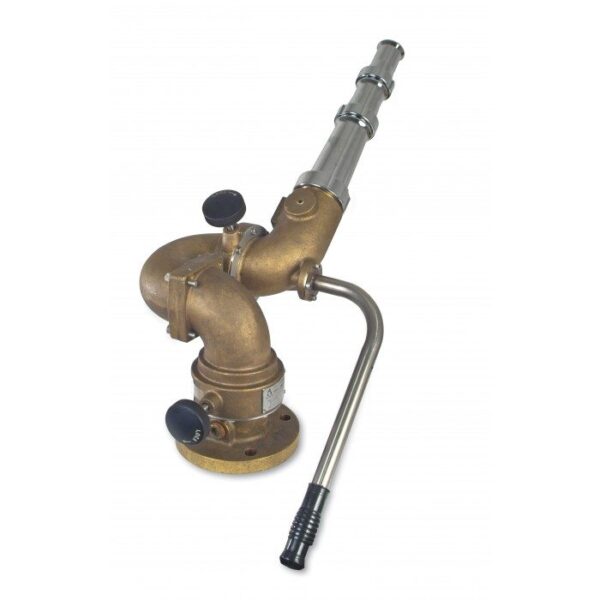

Omega SD Manual Water Cannon
A rugged water cannon designed for the harsh Australian mining conditions. Ideal for high usage applications – Mining – Tank Cleaning – Equipment Wash Down
Akron Brass performance and reliability.
Features:
- Designed as a low cost cannon
- New longer tiller bar that can be mounted in 30 degree increments for increased control
- Extensive duty-cycle use
- Brass & stainless steel construction
- Cast in turning vanes
- Articulation: 360° Horizontal; -90° to +90° Vertical
- 36 month mining warranty
- Flow rate – 4,800Lpm / 1,250gpm
- Normal working pressure – 100psi; Maximum working pressure – 200psi
- Manufactured from brass & stainless steel
- FM approved (must use 4450 or 4461 FM approved nozzle)
Specs:
Style: 3524
Weight: 26.5 kg (58.5 lbs)
Type: Industrial
Material: Brass
Width: 360 mm (14³⁄₁₆”)
Height: 354 mm less nozzle (13¹⁵⁄₁₆”)
Depth: 676 mm (26⅝”)
Inlet: 75 mm standard 100 mm optional (3” standard 4” optional)
Outlet: 2.5” NH (65 mm)
Flow: 4800 Lpm, 1250 gpm
See the hydraulic severe water cannon for mining
See the Nozzle Compatibility Chart here
