Hi-Combat Low Expansion Foam Branchpipe

Description

Foam Branchpipe

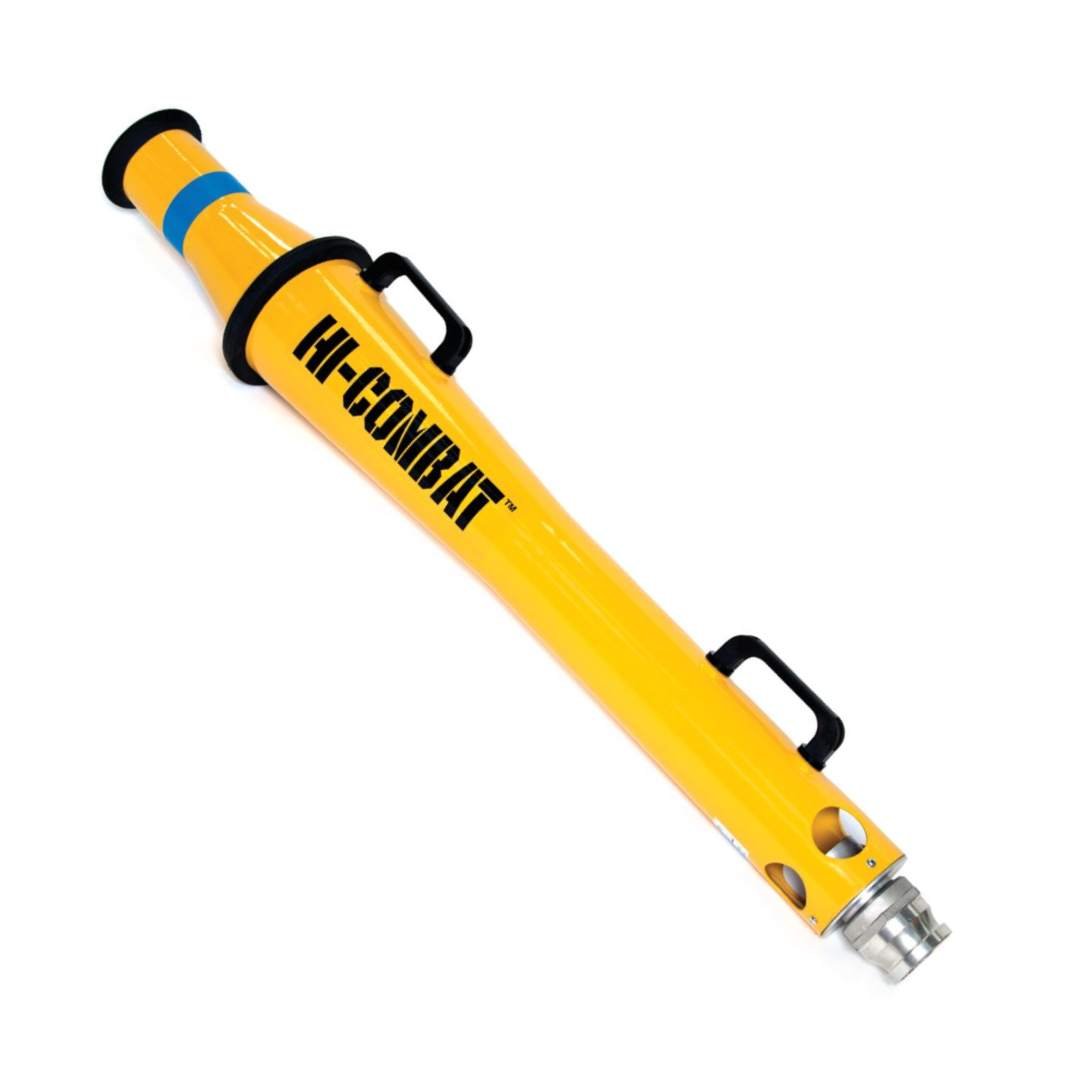

The Hi-Combat Low Expansion foam branchpipe – designed for long range performance.  There are 3 basic models with nominal foam solution throughputs of 225, 450 and 900 litres/mm at 7 bar. Self inducing models are available in the 225 and 450 litre/minute versions. All models produce finished foams of nominal expansion 10 : 1 and give foam streams of an exceptional range. The /SI models are fitted with a self-inducing foam inlet connection, foam concentrate pick-up tube and piercer.

Fittings – Usually supplied with a 2½” British Instantaneous coupling to BS 336 in light alloy, or a 2” BSP (m) threaded connection. Other adaptors may be selected. An on/off ball valve may be specified as an optional extra on the /H models. Specifications
  • Light alloy body finished in yellow thermoplastic powder paint.
  • Nylon coated light alloy handles (F.450/HU, and F.900/H models).
  • Oil resistant synthetic rubber protection rings.
Want to see it in action? Click Here See our other Foam equipment here

Foam Branchpipe performance Data

BranchpipePressure at Branchpipe
Nominal Flow
(litres/metre)
Range (metres)
F.225/HU3.516012
Use type 225 uniductor with above mode5.319517
F.225/SI7.022520
F.450/HU3.532015
Use type 450 uniductor with above model5.339018
F.450/SI7.045021
F.900/H3.571318
Use type 900 inductor with above model5.387721
7.0101024
Add to quote

Low expansion branchpipe that produces exceptional range and reach
