Style BIT British Instantaneous Adapters

Style BIT British Instantaneous Adapters

Description

British Instantaneous Adapters – Style BIT

All aluminium adapters are not created equal. The Red Head Brass quality advantage is built into every aluminium adapter they manufacture.

All Red Head aluminium adapters are hardcoat anodized per MIL-A-8625 Type III, Class 1. No dye or coloring is used. This process provides the completed part with a hardened surface that resists corrosion, abrasion, and reduces electrolysis. It also prevents excessive wear on the threads. Complies with NFPA 1963, 4.12 Corrosion Resistance.

Part identification is stamped into the aluminium prior to hardcoat finish.

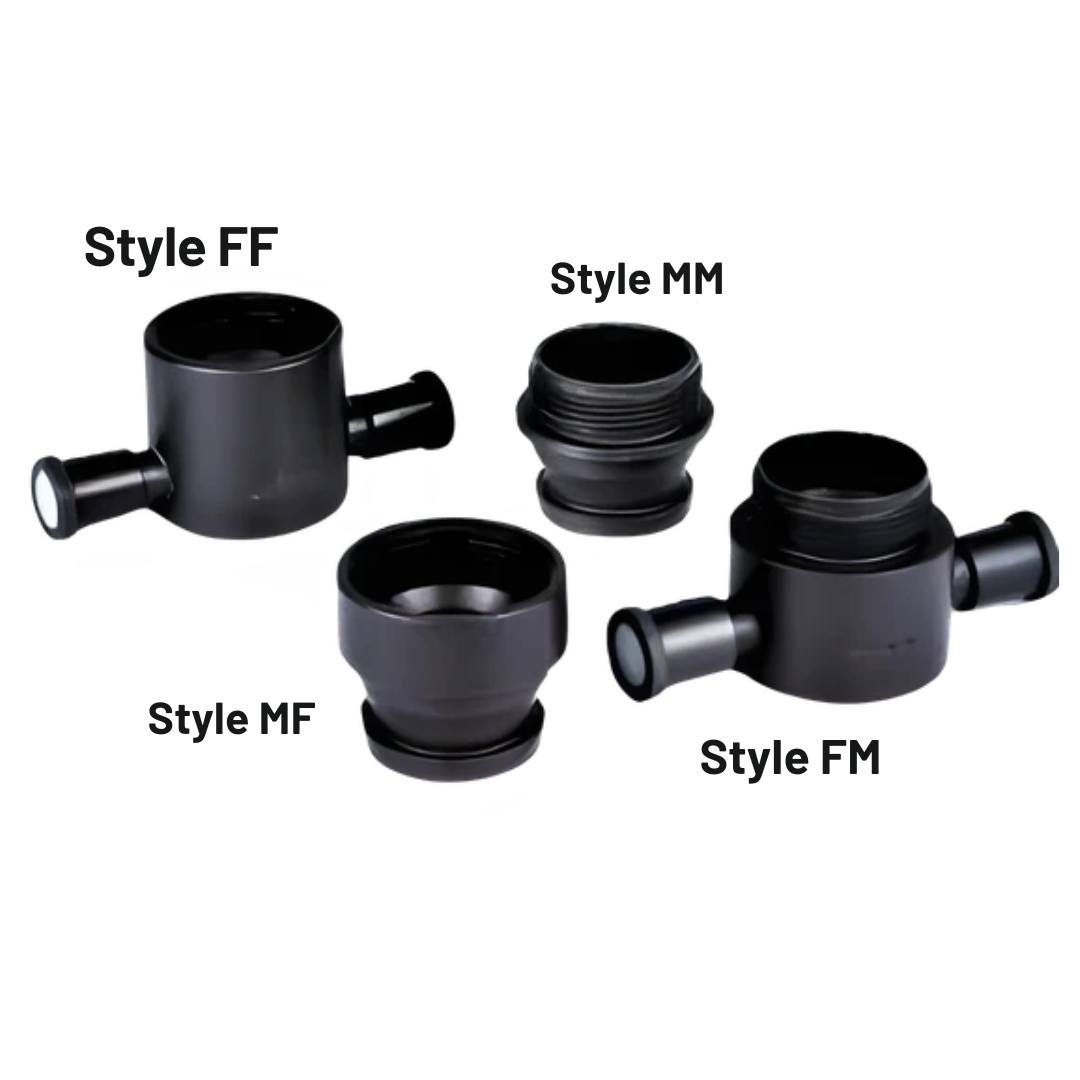

Available Styles and Sizes:
Style MF: BIT Male x Threaded Female
2 1⁄2″ BIT x 11⁄2″ thru 2 1⁄2″ THREAD
Style MM: BIT Male x Threaded Male
2-1⁄2″ BIT x 1-1⁄2″ thru 2-1⁄2″ THREAD
Style FF: BIT Female x Threaded Female
2-1⁄2″ BIT x 1-1⁄2″ thru 2-1⁄2″ THREAD
Style FM: BIT Female x Threaded Male
2-1⁄2″ BIT x 1-1⁄2″ thru 2-1⁄2″ THREAD

Configurations and features:
• All 2-1⁄2″ connections conform to the BS 336 standard.
• Working pressure of 15 BAR or 218 PSI.
